hello all!! About a couple weeks ago I received my new cdk14 and since then every time I have imaged with it, I have been getting these halos around Brighter stars. I have been discussing this with others, and it seems narrowed down to either reflections or temp related. They are in almost every image I take, and I only managed to get a few images without them the other night but last night they returned and would not go away at all. I have tried different filters, cameras, imaging at different angles etc etc. Figured I would give the astro bin forums a shot to see if anyone else here may have had this issue or has any ideas. When I run deconvolution on some of these images it produces star like artifacts around the stars with the halos. I really thought it was temp related but last night both mirrors were within 1 degree of ambient and I always open the observatory hours before to let the mirrors cool down. Another note is that this issue never showed up with our ago idk 14. Here is a raw sub with the halos HA2024-12-1710030600.00-10.00(8).fitsAnd here is one without testblue2024-12-1410030300.00-10.00(14).fitsSent a support ticket to planewave about 2 weeks ago with no answer and just left them a message today. I have also been talking back and forth with matt who used to work with them, and he is stumped also Any insight would be greatly appreciated
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Honestly not seeing anything that can't be caused by conditions, transparency, seeing…
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Tony Gondola:
Honestly not seeing anything that can't be caused by conditions, transparency, seeing... I thought so too but, every night?? and not to mention never showed up on our ago idk at the same time.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
There is no halo and nothing out of ordinary.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
You got bad seeing (of sorts), for you location maybe?
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
andrea tasselli:
There is no halo and nothing out of ordinary. look at this one, you have to zoom in a little to see them. The stars should not have these halos. These halos are what is leading to my artifacts when running deconvolution. If you use PI, run decon or BX on the image and you will see. melotte15cdk |
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Of course the stars have halos, even more so at your image scale and central obstruction, that doesn't come for free. You are at around 2" seeing so a little diffusion should be expected. I can't see sign of thermal plumes either. I just run BXT with the right settings and as expected very little difference before and after. IOW, the image doesn't show signficant aberrations, be it by internal seeing or optical.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Before:  After:  |
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
yea, now go around the field and look at all the star like blobs around the brighter stars. Even on the brighter on in the crop you sent
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.

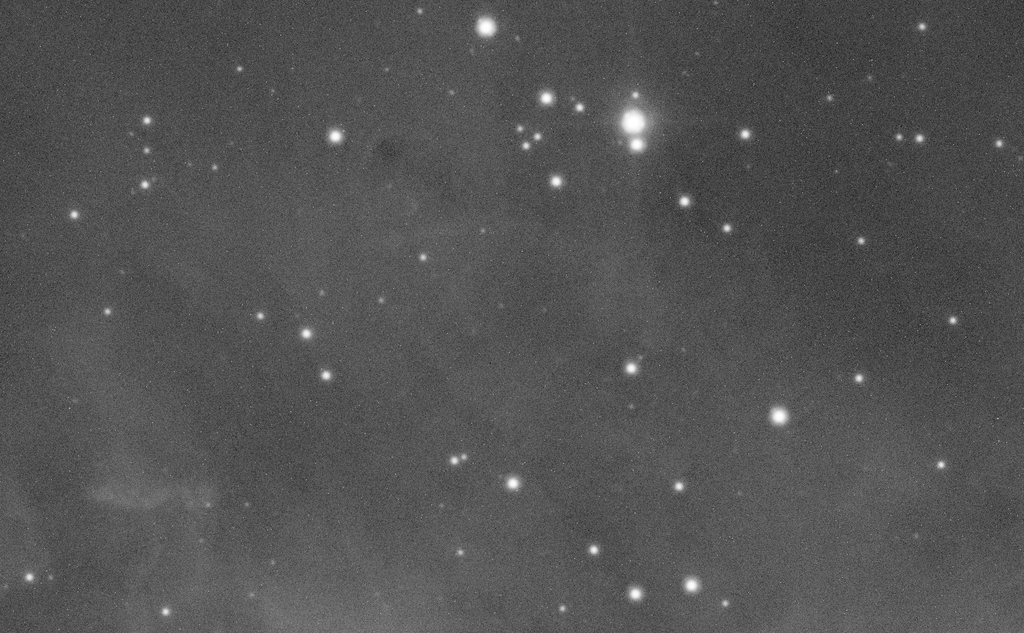

compare that to the last raw sub taken with the ago idk and neither the halos nor the artifacts around the stars are visible after decon HA2024-11-1210050600.00-10.00(2).fits |
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
I can't understand what you are saying. There are no star-like blobs or anything which shouldn't be there. Maybe point to me what you are concerned with.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
You can't see the halos because the B frame has much worse seeing than the Ha, that's all.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
 look around the stars where the halo is after you use decon , only on the brighter stars. those little spots should not be there, and neither should those large halos. In the images I linked, those large halos are not normal especially on the more moderately bright stars. The star like artifacts after running decon is a known issue I've read about but that still doesn't explain the large weird looking halos
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
They also change shape from image to image which had me thinking it was temp related to the boundary layer. One night I left the fans on all night and the halos eventually went away but last night they were still there and would not go away. Keep in mind, this has shown up every night I've imaged with this scope so far.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Now I can see what you're concerned about. Does a star test with a clean imaging train show anything? It's the star like dots in the halo that get my attention as truly weird. I would think that PlaneWave owes you ($$$) a timely response on this.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Now, the blobs as you like to call them will go away with BXT if you suppress the halo.
THe only thing I can think of is of a thermal layer on the primary. But otherwise I can't find any other fault.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
andrea tasselli:
Now, the blobs as you like to call them will go away with BXT if you suppress the halo.
THe only thing I can think of is of a thermal layer on the primary. But otherwise I can't find any other fault. This!! I really think I'm not getting enough air flow over the primary with the fans, enough to scrub the boundary layer for good at least. That would explain why the halos drastically shrunk the other night for a couple subs but then came back in full force the next.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
How many fans do you have, where are they, and are they blowing air out of the scope?
John
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
John Hayes:
How many fans do you have, where are they, and are they blowing air out of the scope?
John 3 at the rear that suck air in and blow it on the back of the mirror
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
John Hayes:
How many fans do you have, where are they, and are they blowing air out of the scope?
John My cdk fans look different than some others though. Mine have the filters on the outside with a cover while others are mounted on the inside of the backplate with slots milled into the plate
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Not the best place to remove a thermal layer, either traverse or possibly better, out blowing out.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
andrea tasselli:
Not the best place to remove a thermal layer, either traverse or possibly better, out blowing out. Pretty sure that’s how all the cdks are set up except the larger ones have side mounted fans.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
did you try eliminating the filters as a cause? How long are these subs?
Those blobs are stars that BXT creates when the halos have clumps in them which BXT thinks are other stars.
How was your seeing that night? Are you imaging at a low elevation location? 2560mm focal length will definitely magnify all seeing effects.
Also, is your focal plane in the predicted spot? (which implies that your secondary spacing is correct.)
How is your collimation? if it is off, this contributes.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Anthony Grillo:
John Hayes:
How many fans do you have, where are they, and are they blowing air out of the scope?
John
3 at the rear that suck air in and blow it on the back of the mirror I'm not a fan of blowing air on the back of the mirror. You might consider reversing the fans just to see if it improves things. John
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Pete Bouras:
did you try eliminating the filters as a cause? How long are these subs?
Those blobs are stars that BXT creates when the halos have clumps in them which BXT thinks are other stars.
How was your seeing that night? Are you imaging at a low elevation location? 2560mm focal length will definitely magnify all seeing effects.
Also, is your focal plane in the predicted spot? (which implies that your secondary spacing is correct.)
How is your collimation? if it is off, this contributes. I have tried multiple different filters, with and without them, two different cameras, imaging at dec 0 and zenith. Focal length solves to 2559, meta guide and sky wave report good collimation. This also isn't a one-night issue it has been all 5 nights I have imaged with it. Like I said before too, ago idk doesn't show this issue at all, under the same skies. Funny part is, the idk mirror is .5" wider and an inch thicker all the way around with only two fans blowing on the back of the mirror and I've never had temp issues with that one. I am going to try tweaking collimation again and see if it changes anything. I just can't see it being that bad with how good collimation is and even was from the factory. Stars are pinpoint all the way to the edge.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
