Horizontal Banding ZWO ASI2600MM Pro · Bruce Donzanti · ... · 3 · 156 · 1

umasscrew39 13.55
Bruce Donzanti
...
·
·  Share link
I noticed severe horizontal banding from my ASI2600MM for the first time in 6 years.

Here is the setup:

In a permanent observatory and direct power from the house which supports both an ASI2600MM on a C11 and an ASI6200MM on a Tak which is piggybacked on the C11.  Power runs from source (house) through a Kendrick 110/120 VAC, 25 A power supply to each camera.  This arrangement has worked for 6 years.

What I tried:
  • I turned on the ASI6200MM which is on the Tak and no banding occurred.
  • I tested for damaged USB cables on the ASI2600MM by replacing with new ones, but the banding issue persisted.
  • I removed the ASI2600MM and replaced it with an ASI2600MC, using the same cables (also had dew heater on as always) that have been used with the ASI2600MM, and the issue resolved itself.

So, it appears something is wrong with the electronics within the ASI2600MM itself.

Any other thoughts as to what could be causing this?

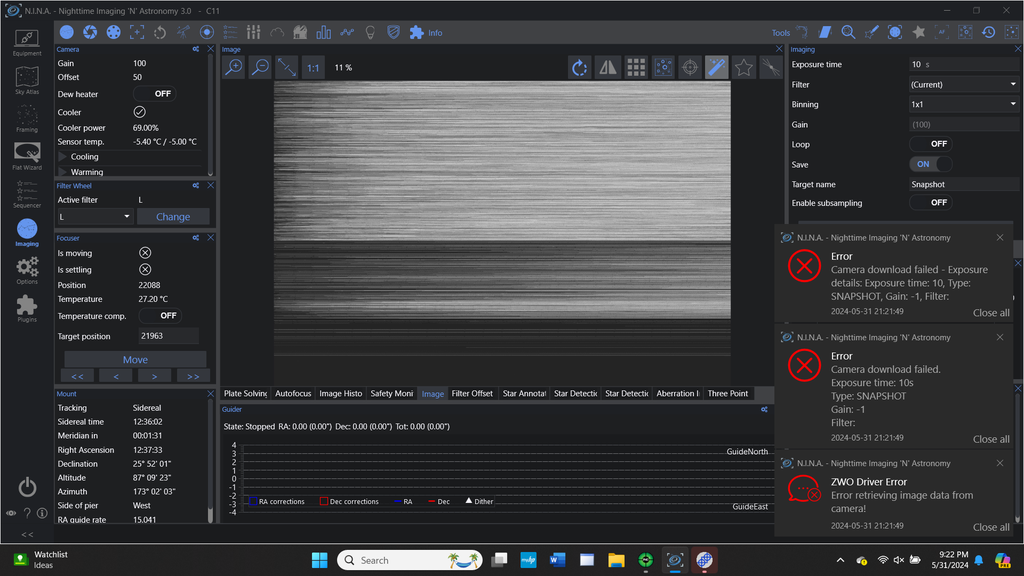

Screenshot (3).png
Like
×

Sorry :-(

Editing a post is only allowed within 24 hours after creating it.
×

Share this forum post

Copy the URL below to share a direct link to this post.

Close
×

Post editing not available

This post cannot be edited using the classic forums editor.

To edit this post, please enable the "New forums experience" in your settings.

Go to Settings Close
andreatax 9.89
andrea tasselli
...
·
·  1 like
·  Share link
The only time something similar to it ever happened to me I had to replace the motherboard.
Like
×

Sorry :-(

Editing a post is only allowed within 24 hours after creating it.
×

Share this forum post

Copy the URL below to share a direct link to this post.

Close
×

Post editing not available

This post cannot be edited using the classic forums editor.

To edit this post, please enable the "New forums experience" in your settings.

Go to Settings Close
umasscrew39 13.55
Bruce Donzanti
Topic starter
...
·
·  Share link
Thanks for the input.  I have heard of a number of folks replacing the 2600 motherboard for various issues.  I'll reach out to ZWO and see what they say.
Like
×

Sorry :-(

Editing a post is only allowed within 24 hours after creating it.
×

Share this forum post

Copy the URL below to share a direct link to this post.

Close
×

Post editing not available

This post cannot be edited using the classic forums editor.

To edit this post, please enable the "New forums experience" in your settings.

Go to Settings Close
tboyd1802 3.34
Tom Boyd
...
·
·  Share link
Could it be a communication issue with the camera? Maybe a bad USB cable?
