Chris,
You’re getting a lot of good advice here but have you been able to tell if this ‘excursion’ is tied directly to either RA directional motion or Dec motion of the mount?
I have an AM5 (new to me) and the chart of PEC that came with it was not all that impressive it seemed. Is it possible that your main camera exposure lengths are long enough that there is now exposure to some kind of hiccup in the PE scheme?
The fact that it’s on one side of the pier only is strange but does (weakly) point to an issue with balance or tension on the mount on that side where a ‘rough spot’ might be getting exposed and have more effect than it should have. Are you using the counterweight? It’s hard to assess actual balance on these things because you can get them to swing freely like a worm gear style EQ mount. Maybe just changing the balance point would have an effect.
Also I don’t know how to myself but there are people aroound that (very generously) will look at your PHD2 guiding logs and analyze them for you and that would be good information as well.
Tough problem, I feel for you…
Bill
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
I still convinced itsl is not tracking error.
i would be very curious to see if you get this star shape without the reducer.
It look more like an optical issue to me.
When your scope is in meridian flip position, any chance something could be creeping in fron of the optic (let say a cable ?)
It truly look like sometype of aberration.
rratid a WO optic that gave me wierd stars in given position because the optic would "deform" or "move" on their own weight…
Also WO have some crappy reducer that would induce bloating.
Anyway just my 2 cents, im far from being a expert. But like I say I doubt it is mount releated
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Esa Viitala:
Do you use a Pier Extension (like the PE-200)? Previously, I had some worse elongated stars when using my Askar 120APO just before the meridian flip. I never seen it at the time but my suspicion was that the scope (or something on the scope) was touching the tripod. I now have the extension pier and no issue around the MF anymore.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Esa Viitala:
What is the clearance between your camera/cables/EAF thermometer probe/or whatever else might be hanging down from the lower end of your telescope just before the meridian? If one of these starts touching the tripod, it can cause all kinds of interference with tracking and guiding. This woud be more so just before the meridian than after because afterwards the tension is getting less and less whereas on the opposite side it gets worse.
Do you use a Pier Extension (like the PE-200)?
Also the nubbins are all reddish (the other part of a star is bluish), which is a sign of chromatic aberration, and then maybe the proximity to the meridian plays some role in causing the reddish "nubbins" to appear.
I'm just guessing here. So my 2 cents. Thanks to all for the responses…I’m going to check out the scope when it’s near Meridian…while I thought my cables were decent…I have one that occasionally snags on some of the AM5s knobs…I do have the pier extension. having said that…all of these comments are making me wonder if it’s not that one cable…will check and report back.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Chris:
Esa Viitala:
What is the clearance between your camera/cables/EAF thermometer probe/or whatever else might be hanging down from the lower end of your telescope just before the meridian? If one of these starts touching the tripod, it can cause all kinds of interference with tracking and guiding. This woud be more so just before the meridian than after because afterwards the tension is getting less and less whereas on the opposite side it gets worse.
Do you use a Pier Extension (like the PE-200)?
Also the nubbins are all reddish (the other part of a star is bluish), which is a sign of chromatic aberration, and then maybe the proximity to the meridian plays some role in causing the reddish "nubbins" to appear.
I'm just guessing here. So my 2 cents.
Thanks to all for the responses…I’m going to check out the scope when it’s near Meridian…while I thought my cables were decent…I have one that occasionally snags on some of the AM5s knobs…I do have the pier extension.
having said that…all of these comments are making me wonder if it’s not that one cable…will check and report back. In my scenario, one cable was hanging in a strange way, new the meridian, that was, in my scenario enough. I completely rearranged my cabling, moving it closer to the center of my mount and then strapping the cables on to the scope, so nothing would be hanging or dangling in strange ways 🥴
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Chris:
Guiding with 2 second exposures. Try with 0.5sec if you can. That works best. I'm usually around 0.3-0.4 total RMS with 0.5sec exposures on FRA500 with reducer and off-axis guider. Check this thread out.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Certainly looks like a snag/dragging cable to me… The only other thing I would be pretty confident to blame would be differential flexture between the guider and the imaging scope. I have seen VERY similar behavior from my old rig, and I discovered that the focuser in the guide scope had a little bit of wobble in it. I locked it down really tight, that wobble went away, and so did my guiding issues.
I would be surprised if it turns out to be anything other than cabling issues, or differential flexture, purely because of how the issue is manifesting only near, and predominantly before meridian flip… It seems VERY unusual that you'd see this sort of behavior without there being some sort of tension on something from a cable dragging or snagging somewhere, or the guider having a bit of movement that is exacerbated by the telescope pointing straight upwards…
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Here: DEC & AR aggr 40% exposure 1.5s calibration step 500ms focal lenght 1624 mm (RC8) with OAG (ASI174mm)  |
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Alex Nicholas:
Certainly looks like a snag/dragging cable to me... The only other thing I would be pretty confident to blame would be differential flexture between the guider and the imaging scope. I have seen VERY similar behavior from my old rig, and I discovered that the focuser in the guide scope had a little bit of wobble in it. I locked it down really tight, that wobble went away, and so did my guiding issues.
I would be surprised if it turns out to be anything other than cabling issues, or differential flexture, purely because of how the issue is manifesting only near, and predominantly before meridian flip... It seems VERY unusual that you'd see this sort of behavior without there being some sort of tension on something from a cable dragging or snagging somewhere, or the guider having a bit of movement that is exacerbated by the telescope pointing straight upwards... Alright now this may be more of a culprit…was uncertain what flexture was until your detailed post (thabk you). I have noticed a slight wobble in the guide camera in the ORION 60mm…now you’ve got me wondering if this isn’t it. the problem I have believing it’s cabling is that the error will manifest for a few subs then go away then come back again…all before the flip. Given the slight movement of the mount while tracking I’m struggling to see how cabling would cause an on/off/on issue for the subs pre flip. (NOTE: that said I did tighten up the one cable in question just to be sure) for my next outing: tighter cable organization 1s exposures on the guide cam (or less) Ensure guide cam is tight in guide scope
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Chris:
Hi All,

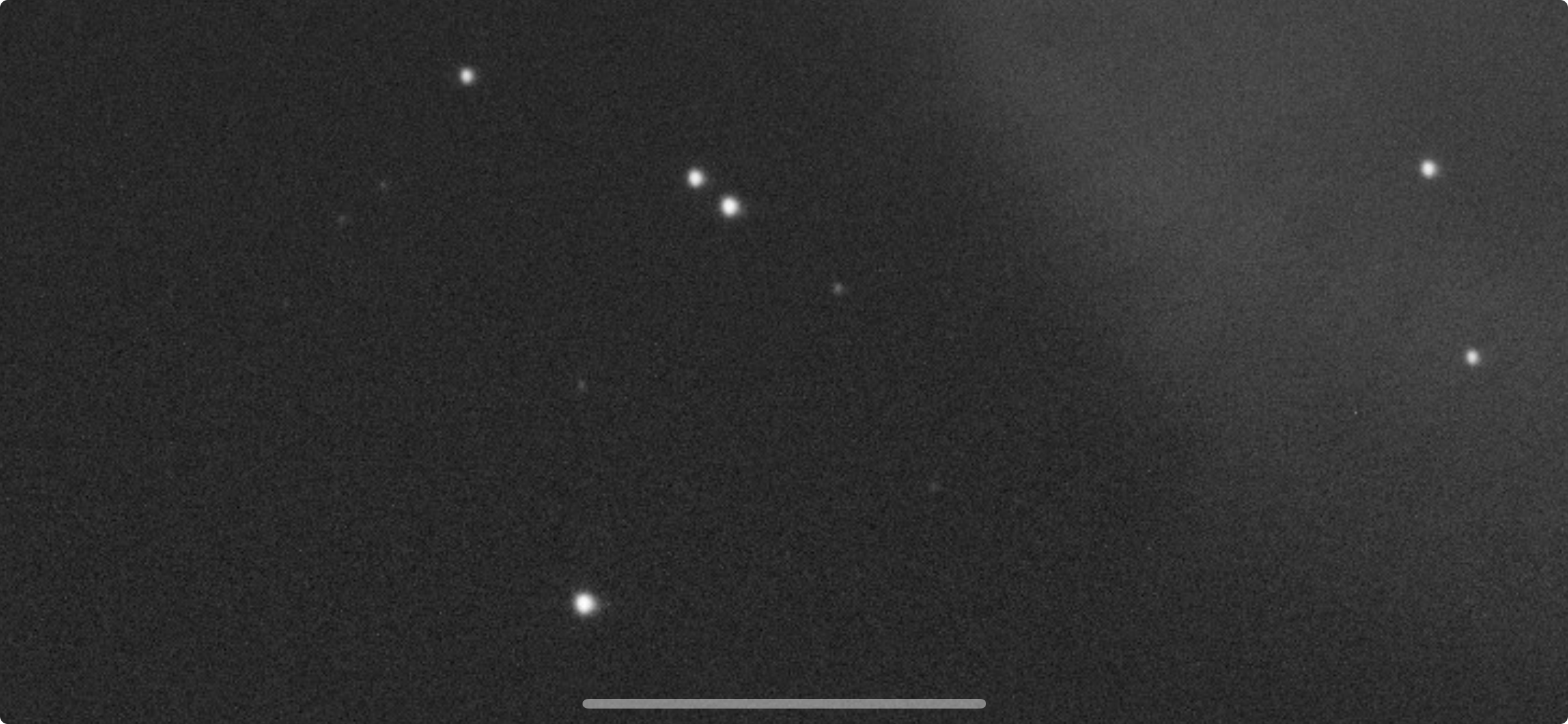

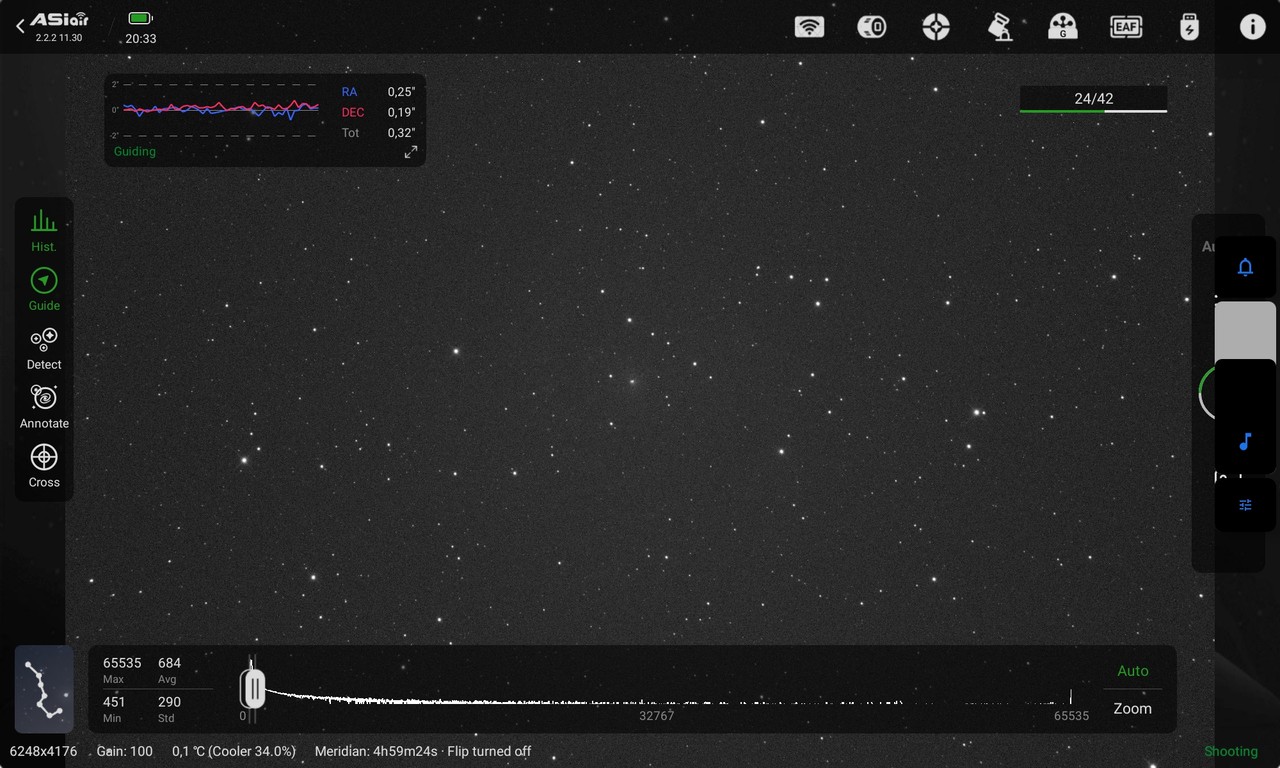

I've been imaging for a year now and noticed a weird tracking error on most nights...usually before the Meridian flip.
It self corrects either frame to frame or sometimes after a few frames. It manifests as a small nodule, nubbin or bubble next to the imaged stars...tried to take a pic of it below (sorry for the bad iPhone picture).
AM5 tracking error?
I've been deleting these frames but was curious if it was correctable.
Mount AM5
Cam 2600MC
Guide scope Orion 60mm
Guide cam: ZWO 224
 I have the same error! I tried an EQ8 and the AM5n and the control is ASIAIR, and I have the same error!
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
I have the same error! I tried an EQ8 and the AM5n and the control is ASIAIR, and I have the same error!
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
I have the same error! I tried an EQ8 and the AM5n and the control is ASIAIR, and I have the same error! Pre Meridian flip only? How many subs (roughly) per session are you experiencing it? Couple nights ago I lost about 10-12 pre flip
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Chris:
I have the same error! I tried an EQ8 and the AM5n and the control is ASIAIR, and I have the same error!
Pre Meridian flip only? How many subs (roughly) per session are you experiencing it? Couple nights ago I lost about 10-12 pre flip

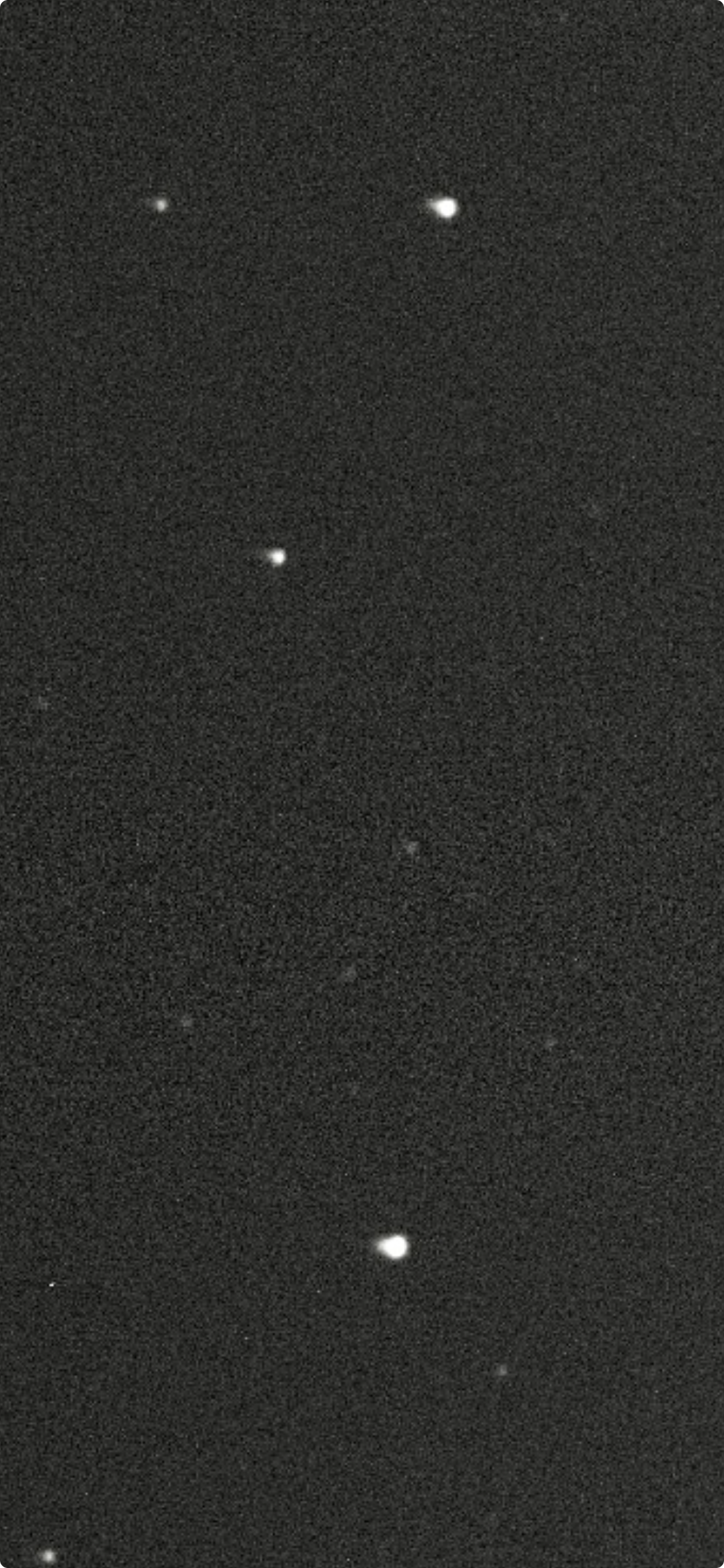

befor Flip
