Stellavita guiding calibration issues. ToupTek StellaVita · Eric Gagne · ... · 6 · 164 · 1

EricGagne 3.82
Eric Gagne
...
·
·  Share link
Hello,

I am having issues calibrating guiding on my StellaVita.  It's a new rig, I took it out for the first time last night.   The hardware is:
  • QHYCCD Minicam8
  • Skywatcher Evolux 62ED (400mm, 358 with 0.9x reducer)
  • ZWO ASI120MM with ZWO Mini guide scope
  • ZWO EAF
  • Skywatcher EQM-35 Pro mount.


A video from Touptek I saw on youtube shows the calibration steps will go up until it reaches a distance of 25.00.  My issue is that it's moving extremely slowly.  I let it go up to over 25 steps and it hardly moved at all.  The default calibration step size in the guide settings is 750.  I changed it to the max allowed value of 6000, it helped a bit but still after 25 steps the distance was just around 10.

Does anyone have suggestions as to what I could try ?  I'm beginning to wonder if it's an issue with the Stellavita+EQM-35 combination.
Edited ...
Like
×

Sorry :-(

Editing a post is only allowed within 24 hours after creating it.
×

Share this forum post

Copy the URL below to share a direct link to this post.

Close
×

Post editing not available

This post cannot be edited using the classic forums editor.

To edit this post, please enable the "New forums experience" in your settings.

Go to Settings Close
AstroHopper 0.00
Astro Hopper
...
·
·  Share link
Same here, guiding calibration does not work as it should.
But, how did you get MiniCam 8 to work with Stellavita. Mine does not recognize filterwheel?
Like
×

Sorry :-(

Editing a post is only allowed within 24 hours after creating it.
×

Share this forum post

Copy the URL below to share a direct link to this post.

Close
×

Post editing not available

This post cannot be edited using the classic forums editor.

To edit this post, please enable the "New forums experience" in your settings.

Go to Settings Close
EricGagne 3.82
Eric Gagne
Topic starter
...
·
·  1 like
·  Share link

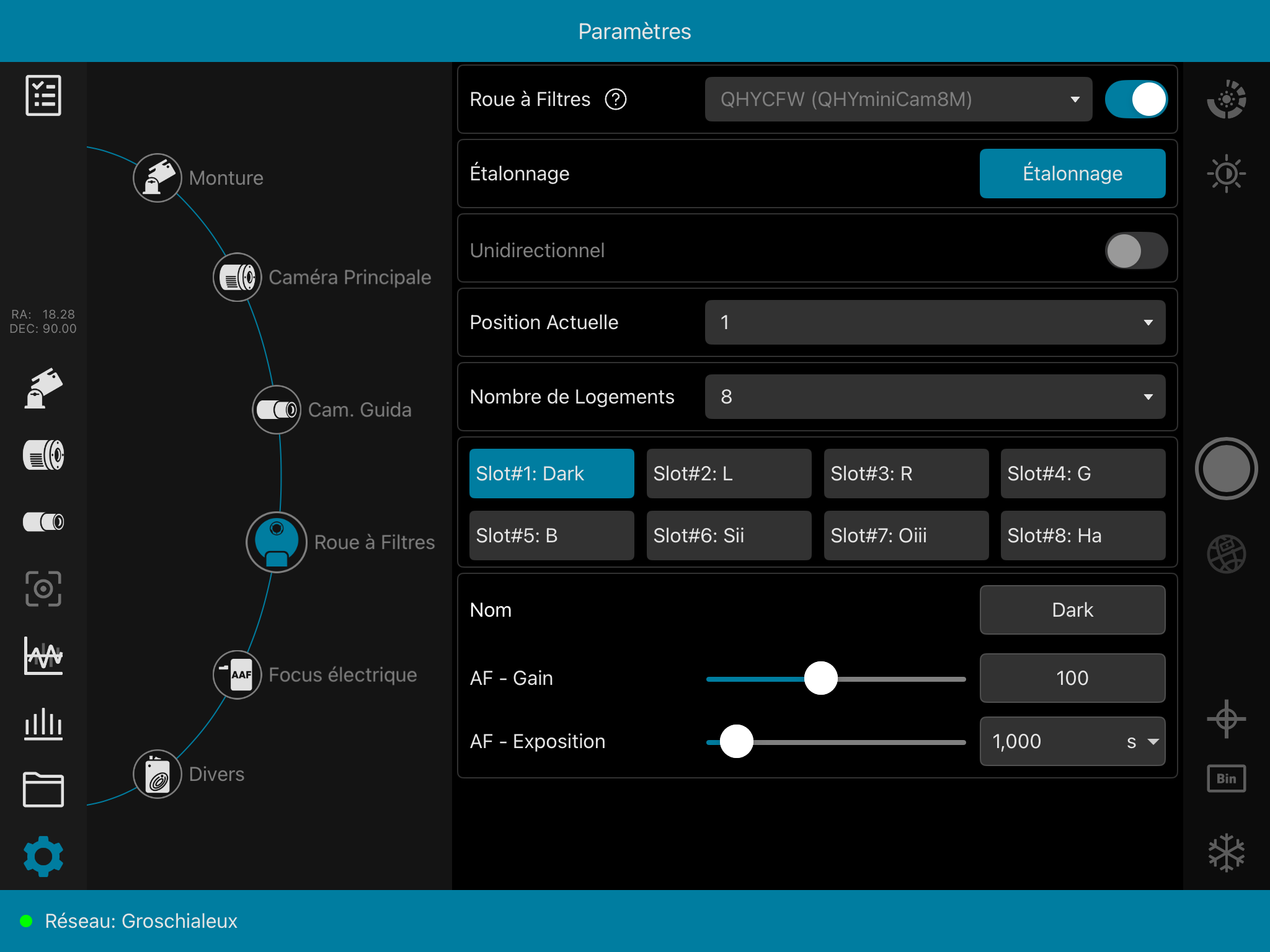

New firmware update released Friday fixes the filter wheel.IMG_0186.png
Like
×

Sorry :-(

Editing a post is only allowed within 24 hours after creating it.
×

Share this forum post

Copy the URL below to share a direct link to this post.

Close
×

Post editing not available

This post cannot be edited using the classic forums editor.

To edit this post, please enable the "New forums experience" in your settings.

Go to Settings Close
AstroHopper 0.00
Astro Hopper
...
·
·  1 like
·  Share link
Thank you for the update on update smile
Like
×

Sorry :-(

Editing a post is only allowed within 24 hours after creating it.
×

Share this forum post

Copy the URL below to share a direct link to this post.

Close
×

Post editing not available

This post cannot be edited using the classic forums editor.

To edit this post, please enable the "New forums experience" in your settings.

Go to Settings Close
EricGagne 3.82
Eric Gagne
Topic starter
...
·
·  Share link
It looks like calibration is highly dependant on where the scope/mount are pointing.  Last night I was trying it near Polaris after polar alignment and homing the mount.  Tonight I slewed to M81 before starting it and it’s much better.  It only needed 10 steps to reach the required distance. The whole calibration was completed in about 5 minutes
Like
×

Sorry :-(

Editing a post is only allowed within 24 hours after creating it.
×

Share this forum post

Copy the URL below to share a direct link to this post.

Close
×

Post editing not available

This post cannot be edited using the classic forums editor.

To edit this post, please enable the "New forums experience" in your settings.

Go to Settings Close
Alexn 12.25
Alex Nicholas
...
·
·  Share link
I have no experience with the EQM35, however, this I can tell you.

Guiding calibration will be faster if you do it near the pole, because movements of the mount result in much smaller angular changes in pointing. This is sub-optimal for calibration, as it is not a 'true' representation of the characteristics of the mounts movement.

Technically speaking, calibration should be done at a declination of 0° +/- 3~4°, and within 10° of the meridian for the best calibration results. Calibrating close to the pole will always result in a sub-par calibration result, either you will be unable to successfully reach the calibration step target, or it will take an incredibly long time to do so.

So, I would recommend calibrating on the celestial equator, within 10° of the meridian for the best results.
Like
×

Sorry :-(

Editing a post is only allowed within 24 hours after creating it.
×

Share this forum post

Copy the URL below to share a direct link to this post.

Close
×

Post editing not available

This post cannot be edited using the classic forums editor.

To edit this post, please enable the "New forums experience" in your settings.

Go to Settings Close
NeilM 2.11
NeilM
...
·
·  Share link
I don't have a Touptek, but I do have an older EQM-35 and it has a huge amount of backlash which I (mostly) removed by making adjustments with an Allen key (several YouTube videos on this).  If I remember correctly when I first got it (used) I couldn't get it to calibrate at all.  After backlash adjustment, I was able to calibrate the guiding, and I now get good guiding with the rig.

If your EQM-35 is new, then presumably it shouldn't have too much backlash "out of the box" but you might wasn't to check it (you can do this visually by sending forward and reverse move commands and seeing if there is a delay in movement)
Edited ...
Like
×

Sorry :-(

Editing a post is only allowed within 24 hours after creating it.
×

Share this forum post

Copy the URL below to share a direct link to this post.

Close
×

Post editing not available

This post cannot be edited using the classic forums editor.

To edit this post, please enable the "New forums experience" in your settings.

Go to Settings Close
