Hello everyone!
I'm having trouble with the declination stop on my EQ8-R after I set a 90° offset. I would like to use two telescopes in parallel on a double fork. You can set a 90° offset for this. The problem is that, in contrast to the old EQ8, the new EQ8-R now also has a hard stop in the declination axis and the manufacturer did not take the offset into account. With low-lying objects, the mount runs at speed towards the stop on one side. Ouch! Supposedly this stop is intended to protect the internal wiring. Does anyone have any advice on how to solve this problem?
CS Henning
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Hi Henning, just use another dovetail bar and build a "crossed" dovetail, like here: https://forum.astronomie.de/threads/eq8-r-mit-doppelbefestigung.295818/post-1515013Best Regards, Nico
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Hello Nico!
Many thanks for your response.
Unfortunately, this is not a solution for me as the additional elements make the system unstable.
My EQ8-R has to carry over 40 kilos and I can't afford any more weak points.
CS Henning
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
I run a dual set up on my EQ8-R in a remote observatory. To make it work, I purchased the following accessory: https://www.admaccessories.com/product/cgx-sbs-celestron-cgx-side-side-adapter/I changed the bottom dovetail for a longer one to have more stability. This arrangement leaves the mount in its original configuration and it might work for you (it will depend on how much total weight you carry I think; this elevates the payload slightly)
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
I cannot understand why the mount allows a 90° offset and is then not fully operational. This is a serious flaw, especially since the old EQ8 worked. No one needs a hard stop in the declination axis, it's all done via Rec. The stop only serves to solve an obvious design error. I spent the whole day setting up the dual system with a friend, wiring it up and balancing it, and in the end it was such a mess.😫😤
It would take another whole day to take everything down and put it back together again.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
For the interim period:
Up to what declination height could I still target objects taking into account the 90° offset?
In any case, Saturn was no longer possible with a declination of -8.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.

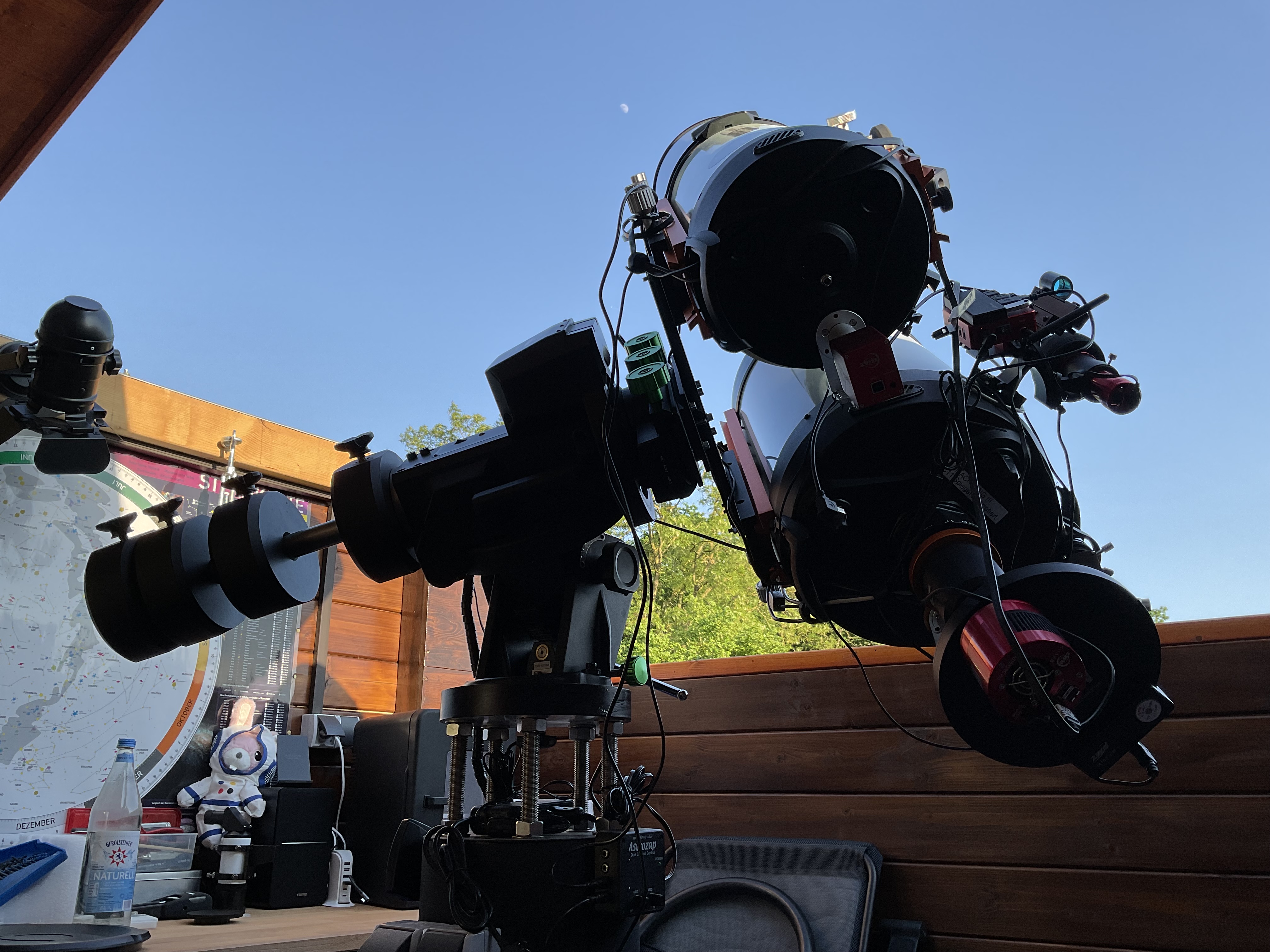

Hi Henning, hab leider nichts dazu gefunden, was dir helfen kann. Ich hab dazu mal was gelesen gehabt aber fand das so scheiße und kompliziert, dass ich mich für meine Lösung entschieden habe ... und sie funktioniert, wie du weißt. Du brauchst nur eine Losmandyschiene mit vielen Bohrungen, um das zu bauen wie bei mir. (Siehe Bild) IMG_0336.JPG |
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.

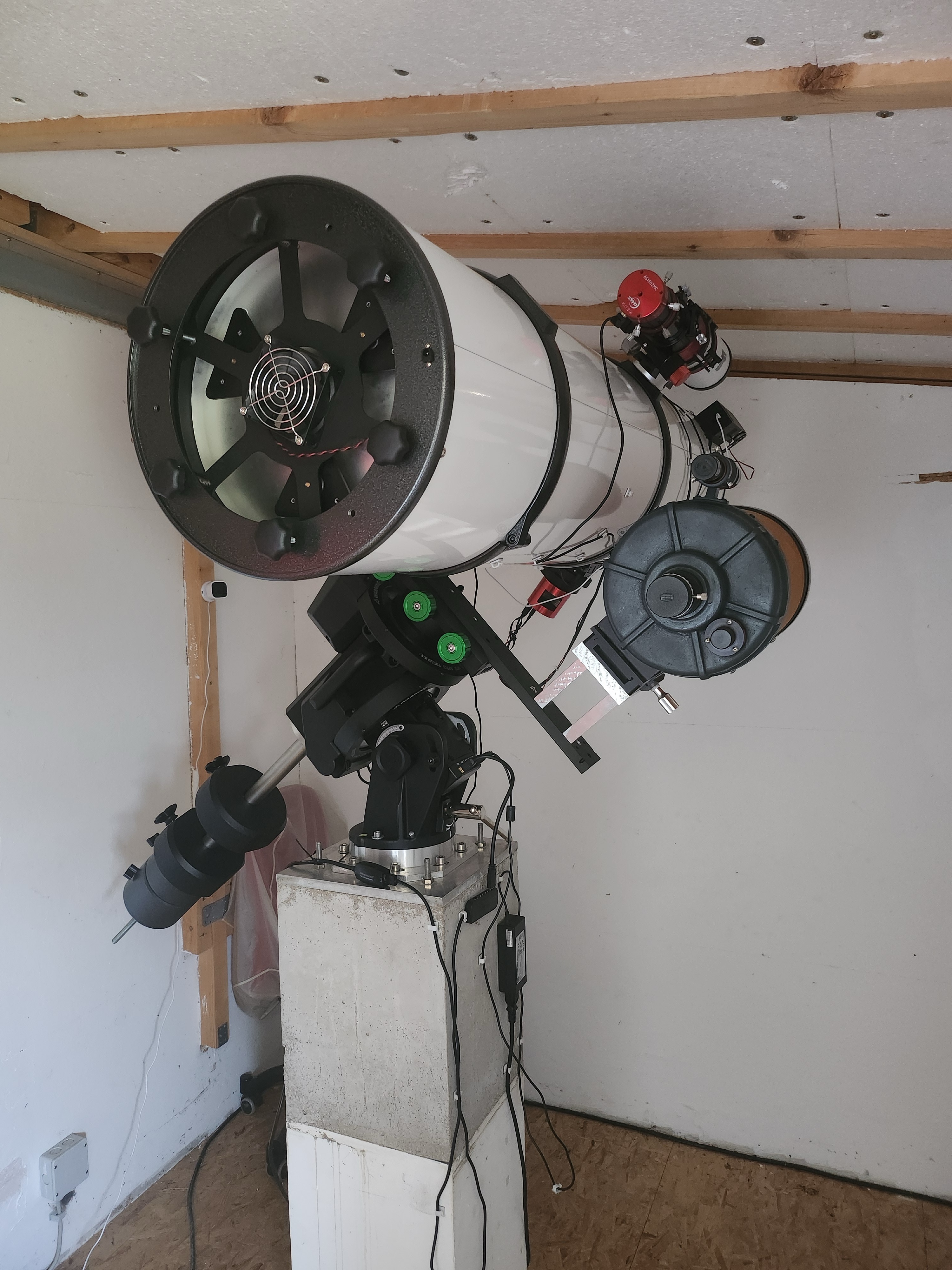

Hi Henning, I own also a EQ8 and run half a year ago into the same problem. The only thing that works is to take off the prismrail holder and turn the mechanic part beneath 90 degrees counterclockwise. As already mentioned you have to be very careful with the cables, they can easily snap off if squeezed (happened to me….). But now it works, in the picture you can see my two scope setup.  |
