Rare pattern stars on samyang 135 Samyang 135mm F2.0 ED UMC · Jandro.rm · ... · 15 · 658 · 7

Jandro.rm 0.90
...
·
·  Share link

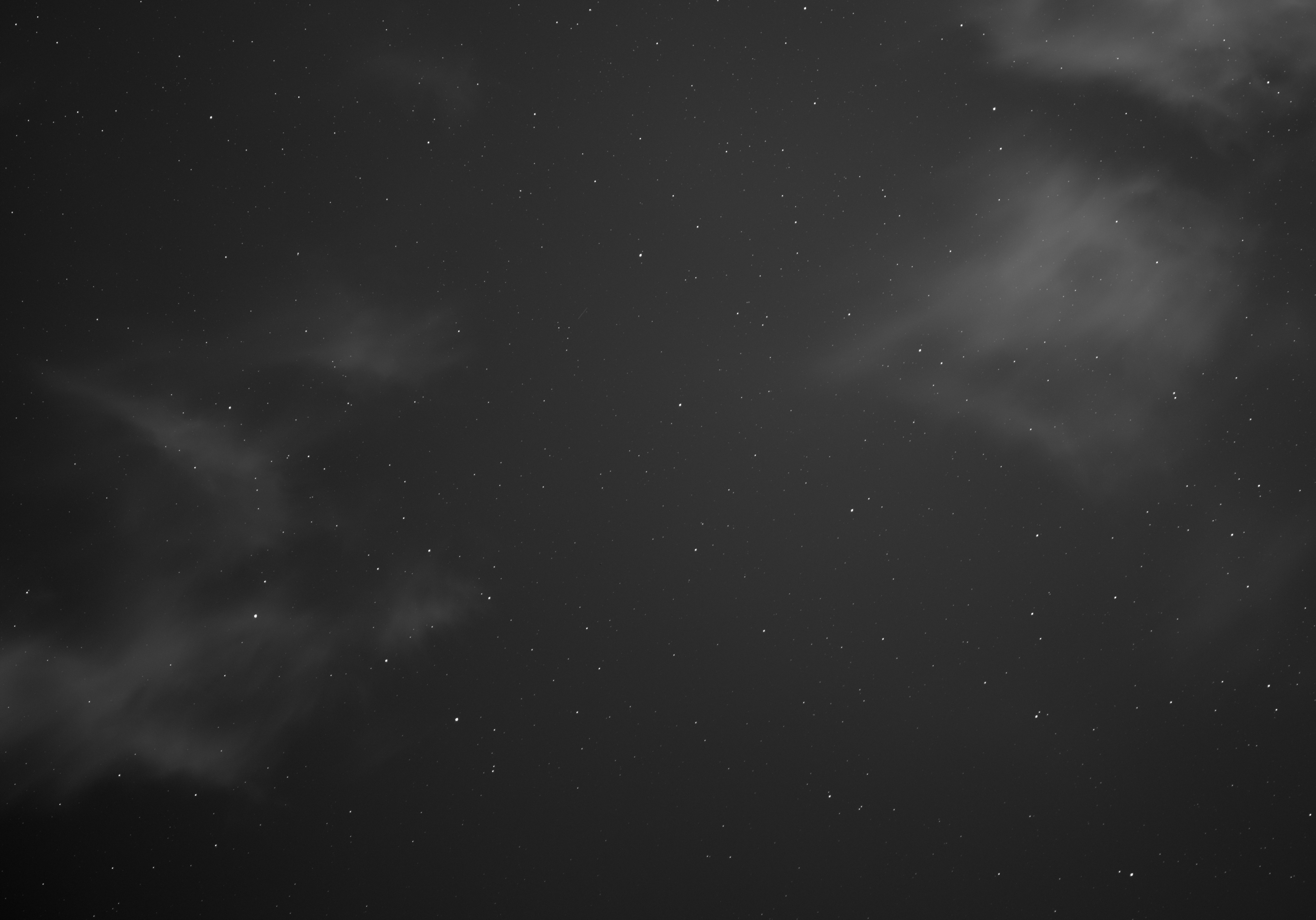

Hello. I purchased from second hand this lens a few weeks ago but I have not been able to test it until these days. I'm noticing some very strange patterns in the stars, like a rhombus or teardrop shape. I have previously the same lens but I have not had any type of problem with stars. I do the autofocus with eaf and it doesn't give me any type of error. Any ideas?estrellas.jpg1.jpg
Like
OABoqueirao 2.81
...
·
·  Share link
Hello JRO_RM,

Yup.. Your problem is related with tilt or backfocus, or both. I had the same problem on mine, until I spend some nights fixing it with very narrow M48 0.25mm rings and a camera tilt plate.
At F/2 is like the RASA's and Hyperstar.. very difficult to adjust the stars.

Regards,

Cesar
Like
JanvalFoto 4.51
...
·
·  2 likes
·  Share link
Looks to me like the stars are all streaking in the same direction which leads me to think this is an issue with tracking/guiding rather than backfocus, which should look opposite on the different edges of the frame.

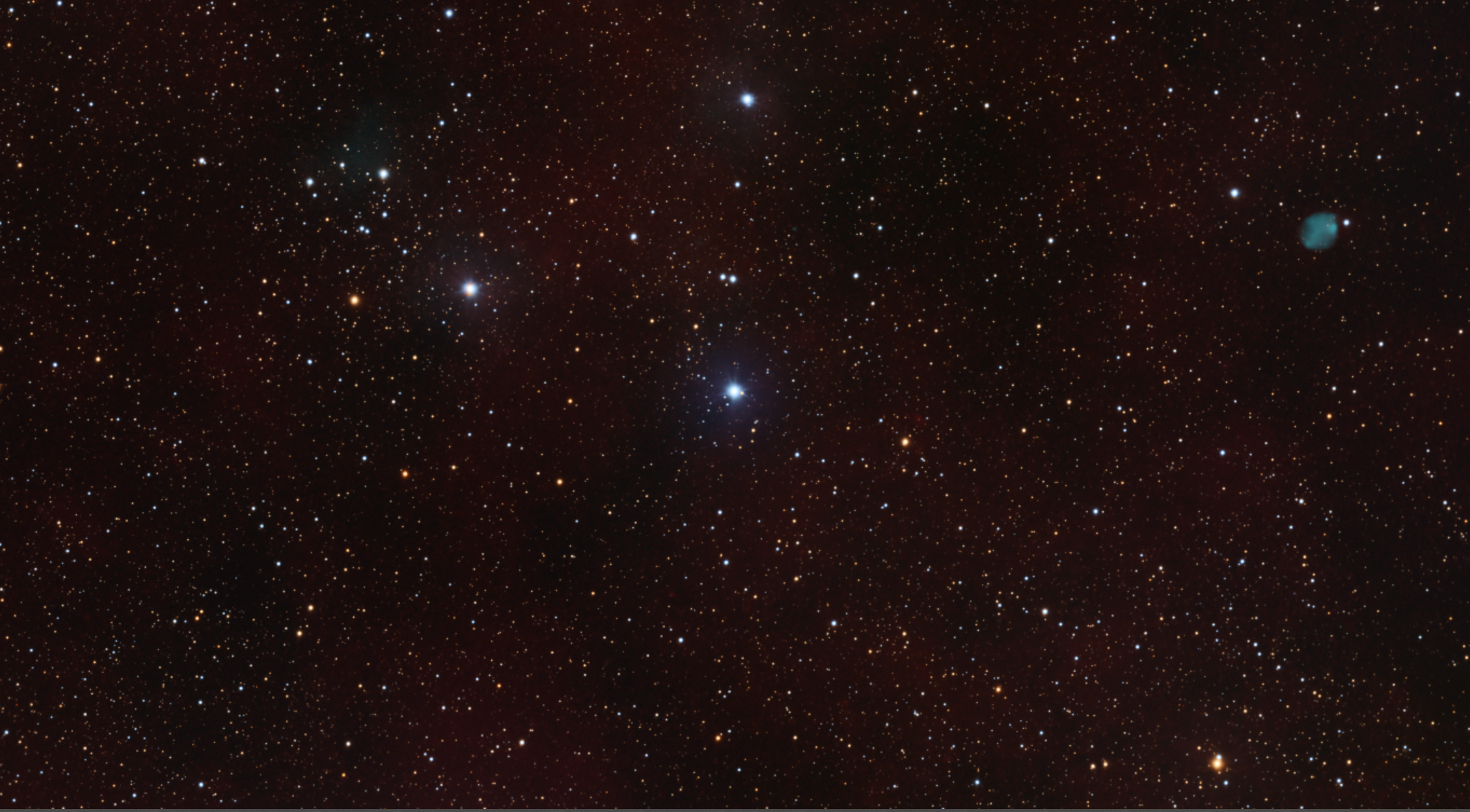

The image doesn't look similar to this, although the issue could perhaps be a bit more prominent in the lower right corner perhaps:


How are you tracking/guiding the lens?
Like
Jandro.rm 0.90
Topic starter
...
·
·  Share link
Looks to me like the stars are all streaking in the same direction which leads me to think this is an issue with tracking/guiding rather than backfocus, which should look opposite on the different edges of the frame.

The image doesn't look similar to this, although the issue could perhaps be a bit more prominent in the lower right corner perhaps:


How are you tracking/guiding the lens?

Hi
Yes, tracking With am5 and guiding With aisair
Like
Jandro.rm 0.90
Topic starter
...
·
·  Share link
Observatório Astrográfico do Boqueirão:
Hello JRO_RM,

Yup.. Your problem is related with tilt or backfocus, or both. I had the same problem on mine, until I spend some nights fixing it with very narrow M48 0.25mm rings and a camera tilt plate.
At F/2 is like the RASA's and Hyperstar.. very difficult to adjust the stars.

Regards,

What distance did you use to accourate backfocus.Now i have exactly 44,5 mm
Edited ...
Like
JanvalFoto 4.51
...
·
·  2 likes
·  Share link
Hi
Yes, tracking With am5 and guiding With aisair


How well is it tracking though?

If you are doing mono with filters you need to add apprx 1/3 of the filter thickness in backfocus as well. This needs to be as accurate as possible, With my mono camera I use various shims downwards to 0.1mm metal myself, however my OSC doesn't need any at F/2 with my second lens (both APS-C). But again, the streaking in your image looks more like a tracking issue to me. They are all elongated in the same direction across the entire frame.
Like
OABoqueirao 2.81
...
·
·  1 like
·  Share link
=16pxWhat distance did you use to accourate backfocus.Now i hace exactly 44,5 mm

Mine is at 44,75mm when I’m using the SHO 2mm thickness filters.. but if use the Optolongs I have to reduce it one of the 0.25mm rings.. but this is in mine.. you have to do some tests on yours and figure it out the correct backfocus I’m yours since he can change from camera to camera.

If you want to keep things at F/2 you need some M48 or M42 shimmer rings and find yourself a Tilt plate. I suggest a Gerd Neumann or a Baader tilter rather the ZWO, Thisbe because the adjusters are on the side instead on the front of the plate. This will save you time and gives you a better corrected field of view without put the camera out everytime to adjust it.

The rings help you fine tunning the backfocus. Alternatively you can put an Askar Backfocus adjuster along with one of the tilt plates that I mentioned, but make sure you don’t put more than the backfocus required for the lens counting with the one from the camera. The Askar is very usefull because saves you also time and is super precise. The lens bayonet need also to be changed for a M48 plate like the one sold in FLO..

Regards, Cesar
Edited ...
Like
Jandro.rm 0.90
Topic starter
...
·
·  Share link

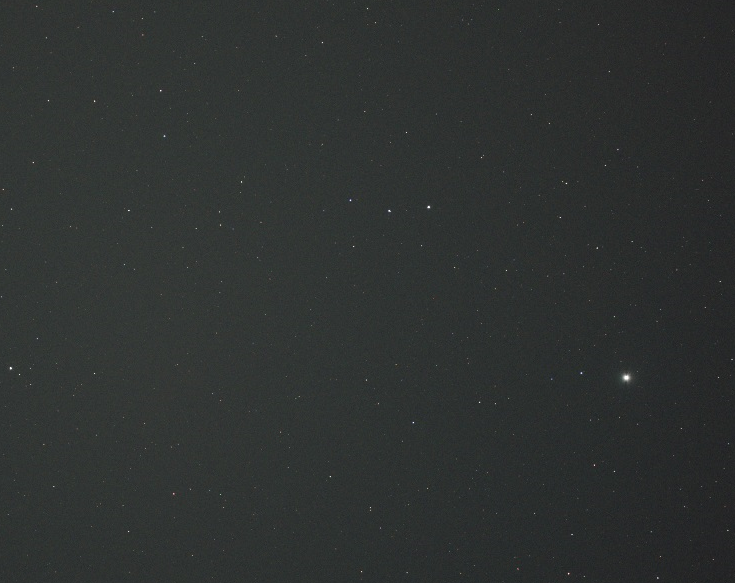

Well. THis week is cloudy here. I will try next clear night, accurate backfocus and again, try to check the guide system, but i have here some lights that i shot 2 weeks ago, and the stars seem rounder, but it has other pattern. Indeed i have a uv/ir 77mm filter on front of the lens...i don´t know if this can affect it1.png
Edited ...
Like
JanvalFoto 4.51
...
·
·  Share link
Looks good there. Same camera/setup? It just leads me even more towards guiding/tracking being the issue at hand.

The pattern you are seeing aren't uncommon, I've seen them with one of my copies as well. Getting an aperture mask should sort it out but personally I haven't bothered.

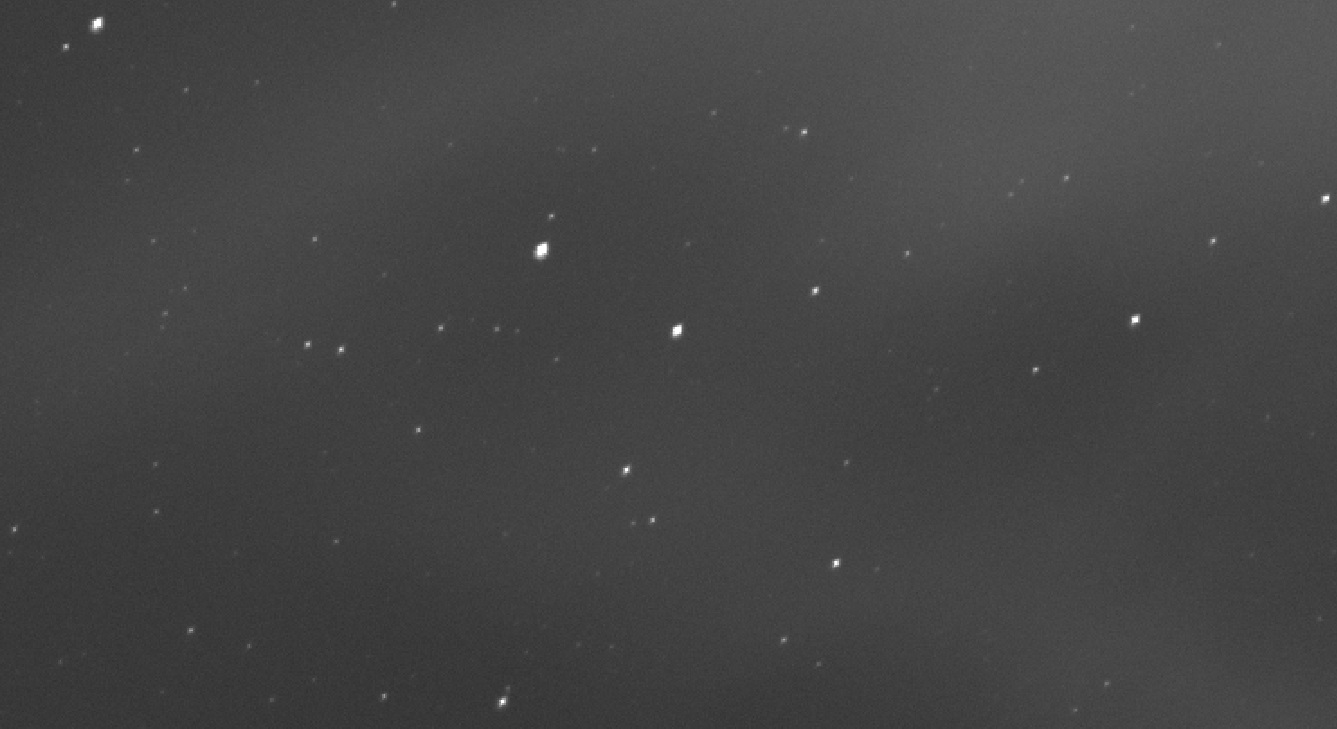

This is from a far corner in one of my own images where you can see it too but it doesn't get that bothersome IMO:
Like
Jandro.rm 0.90
Topic starter
...
·
·  Share link
Looks good there. Same camera/setup? It just leads me even more towards guiding/tracking being the issue at hand.

The pattern you are seeing aren't uncommon, I've seen them with one of my copies as well. Getting an aperture mask should sort it out but personally I haven't bothered.

This is from a far corner in one of my own images where you can see it too but it doesn't get that bothersome IMO:

Yes, same setup but in that moment i didn´t had the backfocus fixed 100%. The camera is 2600mcpro + lultimate filter. The pics before (first in the post) were shot with  2600mmpro+luminance filter
Like
Jandro.rm 0.90
Topic starter
...
·
·  Share link

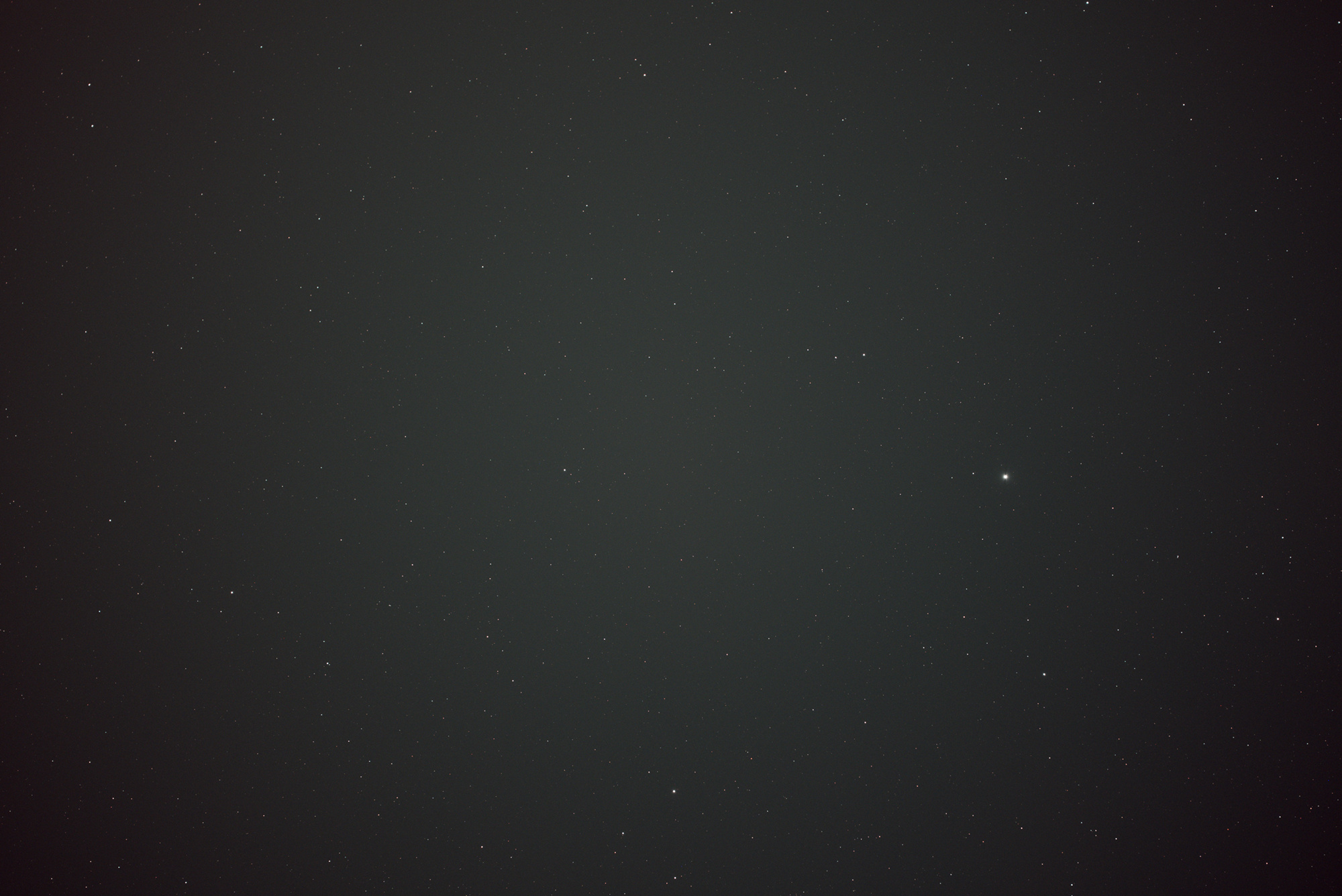

Hi again. I´m take some pics tonight and i have the same problem. My stars aren´t rounder and i don´t know why. I tried with 43-44-45 mm and the same result. I can´t get perfect stars in the middle of fov. I don´t know what can try now. i tried with and without guiding, only 5 seg exposure. Any idea?Screenshot_2024-12-09-00-23-31-653.jpeg
Like
Gondola 8.11
...
·
·  Share link
Does the elongation line up with your RA or DEC axis?
What do 1 second exposures look like?
Like
Jandro.rm 0.90
Topic starter
...
·
·  Share link
Tony Gondola:
Does the elongation line up with your RA or DEC axis?
What do 1 second exposures look like?

It depends. I think is  I have tightened the adapter too much and it may cause artifacts. 1 second exposure its the same issue, indeed whe i try to focus with asiair, the stars has elongation on live view
Like
Gondola 8.11
...
·
·  Share link
So we can definitely say that it's an optical issue at it's base, possibly made worse with tracking issues. What I would do to caricaturize the issue further would be to rack a bright star out of focus, place it in the center of the fame and shoot a series of really short exposures you can then stack. This should give you a very clear view of what's happening.
Like
Jandro.rm 0.90
Topic starter
...
·
·  Share link
Tony Gondola:
So we can definitely say that it's an optical issue at it's base, possibly made worse with tracking issues. What I would do to caricaturize the issue further would be to rack a bright star out of focus, place it in the center of the fame and shoot a series of really short exposures you can then stack. This should give you a very clear view of what's happening.

ok, i just did some testing and found the problem. It was a filter uv/ir that I had in front of the lens and that must have been incorrectly placed and caused the distortions. Now I have taken several exposures and they look point stars
Like
Gondola 8.11
...
·
·  Share link
Tony Gondola:
So we can definitely say that it's an optical issue at it's base, possibly made worse with tracking issues. What I would do to caricaturize the issue further would be to rack a bright star out of focus, place it in the center of the fame and shoot a series of really short exposures you can then stack. This should give you a very clear view of what's happening.

ok, i just did some testing and found the problem. It was a filter uv/ir that I had in front of the lens and that must have been incorrectly placed and caused the distortions. Now I have taken several exposures and they look point stars

Wonderful! Glad you got it figured out.
Like
