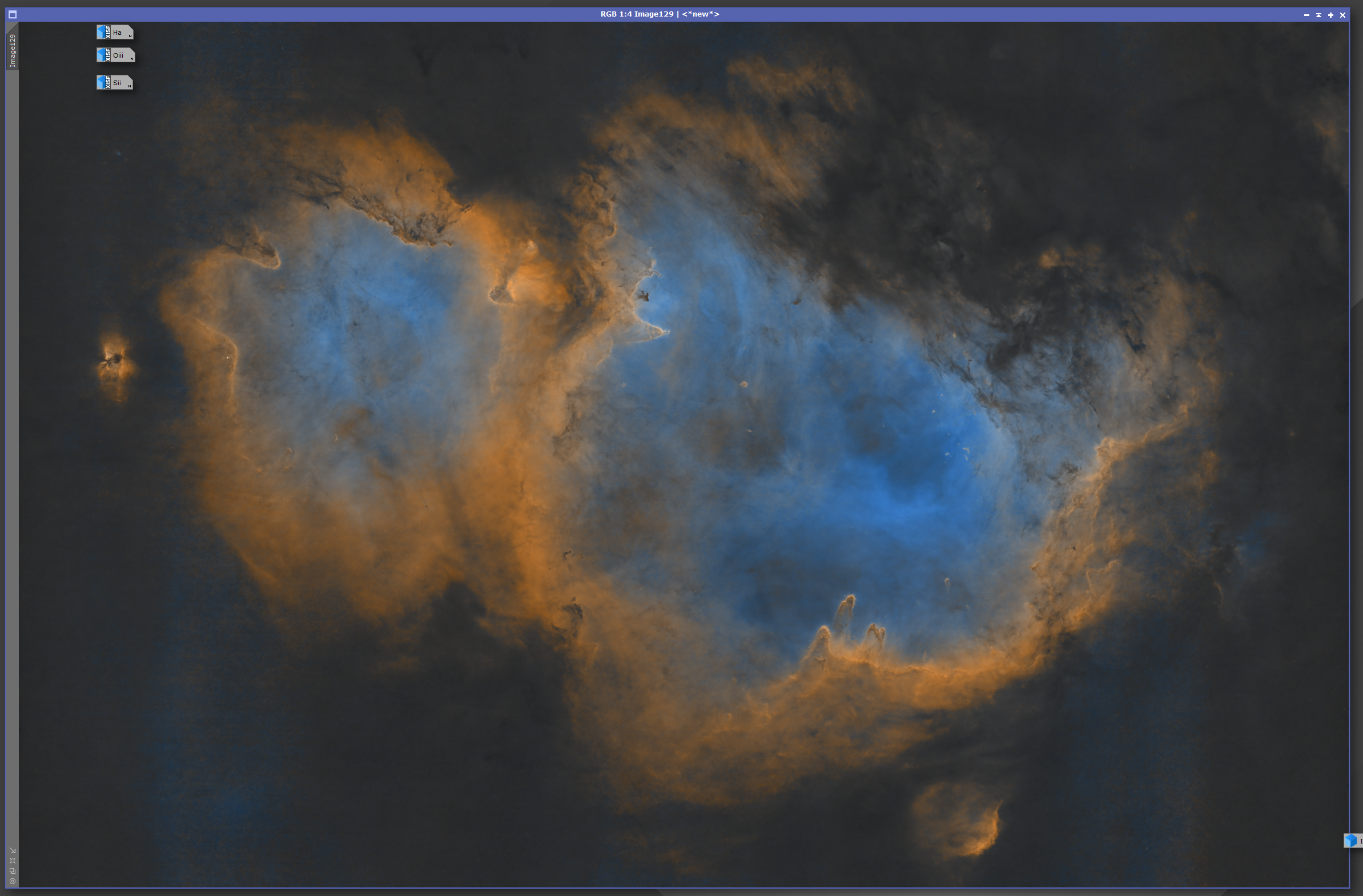

Hi everyone, I installed a used QHY600 M pro (early bird) in my skywatcher 150 esprit. I have been using Baader narrow band filters and have noticed these blue wide vertical bands on my images. I use the .77 reducer/flattener for the Esprit. I previously had ASI2600 MM w/o any problems. Can anyone figure out what is causing it? This is a partially stretched image... See the 3 blue bands...  |
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
try the CanonBandingReduction script on your OIII image
I'm guessing the root cause probably has something to with calibration
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
I tried cannonbandingreduction but it looks for horizontal bands and I don't see a setting to change it. I tried a number of flats with no avail…
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Harry Karamitsos:
I tried cannonbandingreduction but it looks for horizontal bands and I don't see a setting to change it. I tried a number of flats with no avail... just rotate the image 90 degrees right or left  |
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Could it be rolling shutter artifacts from an LCD / Flats panel? …Possibly if your QHY has different flat exposure time requirements than your previous camera? If it were me and I also suspected the sensor, I'd stretch the flats to check that as well. In that case the cancellation might not be happening because of a pedestal value, darks, etc..
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Maybe, I’ll work on that tonight
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
I don't know if this is relevant, but I once had trouble with faint horizontal bands with this camera. When I adjusted the offset they went away. The manual says: https://www.qhyccd.com/astronomical-camera-qhy600/OFFSET SettingThere is no fixed “best value” for OFFSET. To set OFFSET, you should take the bias frame and dark frame at a certain GAIN value, then checkthe histogram of the frames.The histogram distribution is a peak-like curve. While changing the OFFSET value, the histogram will move left or right. We need toguarantee the range of the whole curve won’t be chopped off at the end. At the same time, we need to keep a little residue on the left side,just over 0 a bit.Pay attention that under different GAIN values, the width of this peak varies. The higher the GAIN is, the
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
I have been using 56 for the gain and 50 for the offset.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
An offset of 50 for a gain of 56 sounds good. So I’m sorry, my idea was a red herring! Sorry to waste your time.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
It’s never a waste, come on! The whole point of this is to share ideas and I thank you for yours.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
I have had similar issues with a ZWO 533mcPro. All came down to me capturing subs at a different offset than I had used to create a masterdark for that sub length. In the end I created a new MasterDark with the settings the Lights, Flats and Flat-Darks used at capture.
CS Tim
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
I’ll give that a try too.
|
