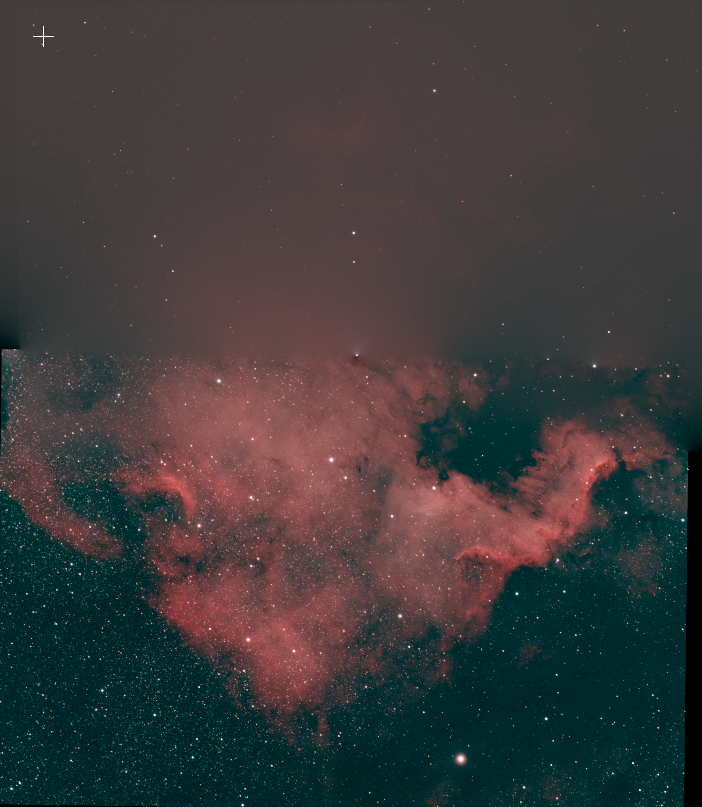

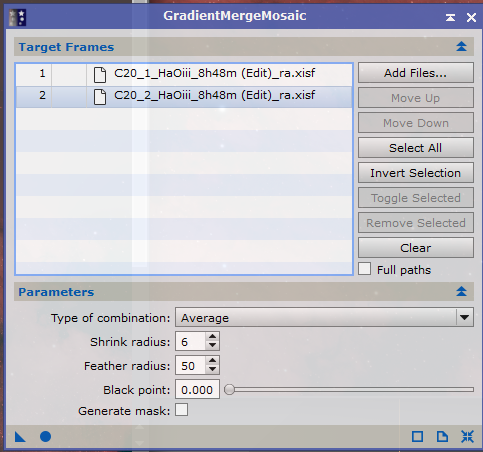

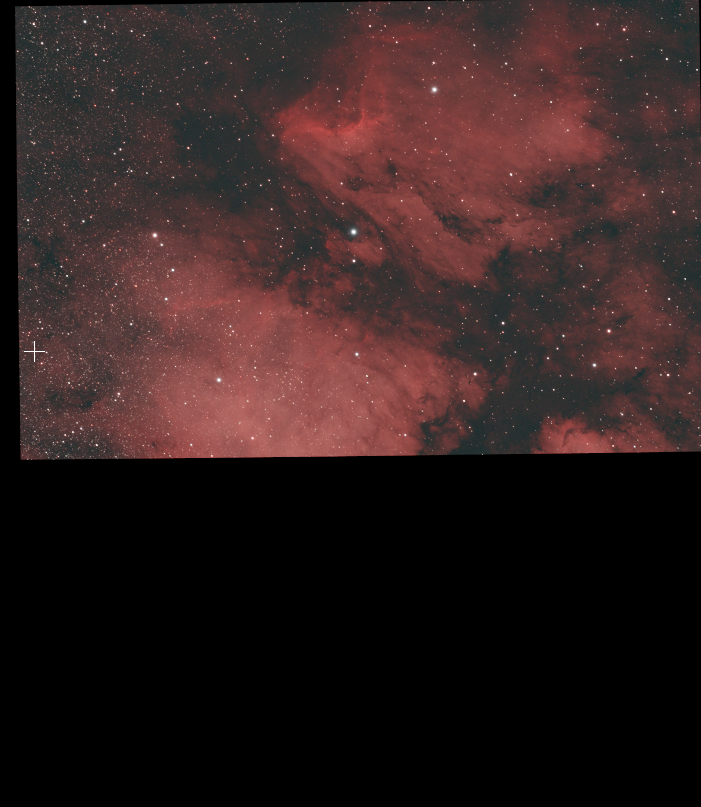

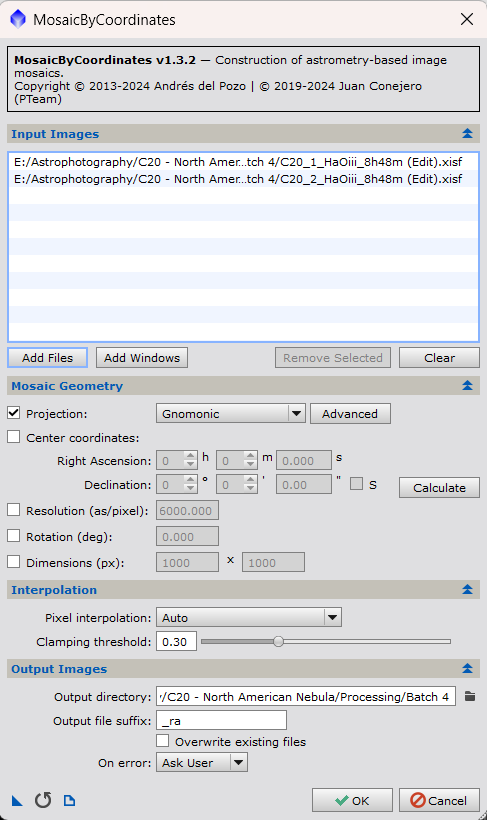

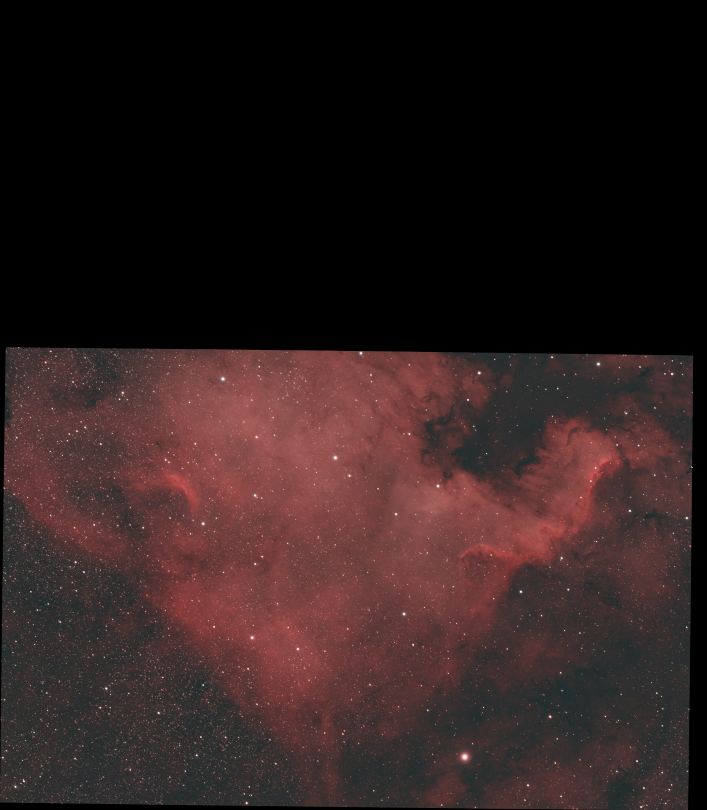

I've been trying to do a 2-panel mosaic. Below is the result I get from GradientMergeMosaic.  As you can see from the 2 images below, it's not correctly combining them. The top image is super blurry and the bottom image is super grainy and the contrast is screwed up.   My steps to this point: - Did a STF - Resampled at 50% - Cropped - DBE - Image solver to plate solve - Mosaic by coordinates (see settings below) - Gradient merge mosaic (see settings below)   I've played around a bit with these settings, but nothing has fixed it. Any ideas what's going on? Am I missing something? I have successfully done this before with the same process, so idk why this time is different. Thanks in advance!
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
See if you can get ahold of PMM or PhotographicMergeMosaic. It's been discontinued but it's much better at doing mosaics. I've not seen very good results from GMM. I think with some Google you can find the script online. I keep it saved in my files in case I update pix.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
That is because these two images have different brightness levels. You can use linearfit to make both images have the same brightness. Be cautious; it needs to be done before mosaic alignment.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Brian Puhl:
See if you can get ahold of PMM or PhotographicMergeMosaic. It's been discontinued but it's much better at doing mosaics. I've not seen very good results from GMM. I think with some Google you can find the script online. I keep it saved in my files in case I update pix. Are you talking about the photometric mosaic script? It's very powerful and it's not discontinued. It's just no longer included in the standard PI installation. You can install it by yourself. It can be found here: https://www.astroprocessing.com |
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Tipically GMM works best with stretched imagens - try to stretch both and then run the process. If it doesn't work, then I would go for PMM, as other colleagues are mentioning.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
You have PS, have you tried there Photomerge, I've used it, works quite well.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
The mosaic function in Affinity Photo works nicely as well.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Shun-Chia yang:

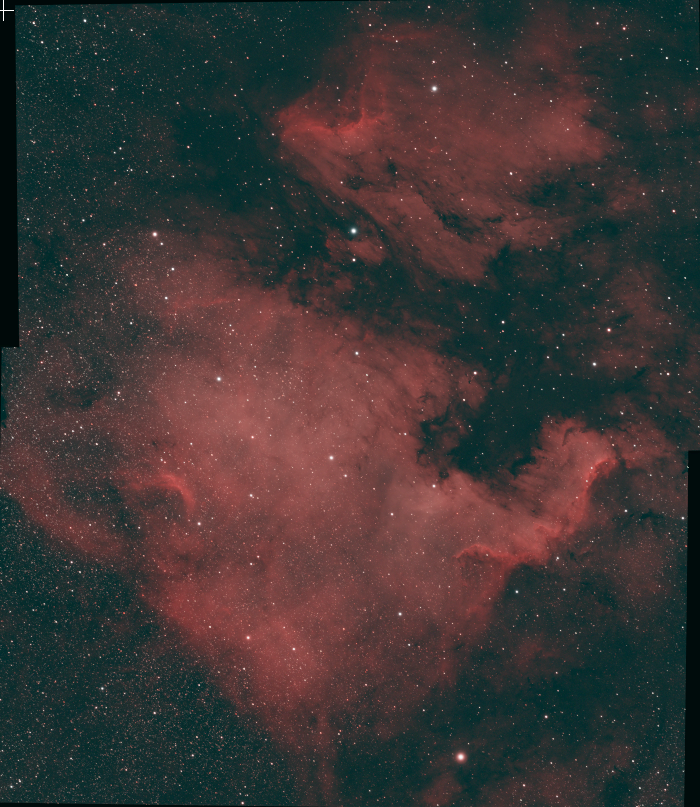

That is because these two images have different brightness levels. You can use linearfit to make both images have the same brightness. Be cautious; it needs to be done before mosaic alignment. This worked, thank you! Only note was I had to use DNA Linear Fit instead because regular linear fit gave me errors. Only other downstream issue was the bright stars where the image overlapped was giving me some strange artifacts. But I was able to solve that with pixel math (following the pinched star technique here: http://trappedphotons.com/blog/?p=994). Aside from that, just needed to hit the image with a quick background neutralization afterwards to equalize the green tint.  |
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Wei-Hao Wang:
Brian Puhl:
See if you can get ahold of PMM or PhotographicMergeMosaic. It's been discontinued but it's much better at doing mosaics. I've not seen very good results from GMM. I think with some Google you can find the script online. I keep it saved in my files in case I update pix.
Are you talking about the photometric mosaic script? It's very powerful and it's not discontinued. It's just no longer included in the standard PI installation. You can install it by yourself. It can be found here:
https://www.astroprocessing.com The website doesn't seem to be functioning right now. Anyone know what's going on there?
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Derek Vasselin:
Wei-Hao Wang:
Brian Puhl:
See if you can get ahold of PMM or PhotographicMergeMosaic. It's been discontinued but it's much better at doing mosaics. I've not seen very good results from GMM. I think with some Google you can find the script online. I keep it saved in my files in case I update pix.
Are you talking about the photometric mosaic script? It's very powerful and it's not discontinued. It's just no longer included in the standard PI installation. You can install it by yourself. It can be found here:
https://www.astroprocessing.com
The website doesn't seem to be functioning right now. Anyone know what's going on there? No problem here.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Wei-Hao Wang:
Derek Vasselin:
Wei-Hao Wang:
Brian Puhl:
See if you can get ahold of PMM or PhotographicMergeMosaic. It's been discontinued but it's much better at doing mosaics. I've not seen very good results from GMM. I think with some Google you can find the script online. I keep it saved in my files in case I update pix.
Are you talking about the photometric mosaic script? It's very powerful and it's not discontinued. It's just no longer included in the standard PI installation. You can install it by yourself. It can be found here:
https://www.astroprocessing.com
The website doesn't seem to be functioning right now. Anyone know what's going on there?
No problem here. Works now for me as well. Must have been down for maintenance at the time.
|
