Greetings! I'm getting geared up for a run on M57 and was reviewing some subs from my first night of images. I noticed that I've got some diffraction spikes on the stars and I'm not sure where those are coming from. I don't see anything obstructing the corrector plate, so I'm a little confused. I was expecting round stars and instead I'm seeing vertical spikes. My imaging train is nothing too complicated. C11---> Starizona LF Reducer---> Starizona 91mm imaging spacer---> Antlia RGB Ultra tri-band filter---> ZWO ASI2600 MC Duo pro  I tried a quick pass with blur/noise exterminator, no luck. I also tried verified that the spikes exist in the un-stretched subs, so there's something in the optical path I would think. I also used ASTAP to measure tilt just in case something was out of whack in the imaging path, but the report shows no tilt. Could this be a collimation issue, or should I assume with no tilt that collimation is also good? What am I missing? Jeramie
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
I had something akin to that a long time ago when I had a large Cass. It turned out it was a heat plume from the baffle tube. To be sure I'd need to see an unprocessed but calibrated frame.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Are you using the celestron dew heater ring? I read somewhere that too much heat can warp your schmidt plate and produce abberations.
Regards
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Tobiasz:
ch heat can warp your schmidt plate and produce abberations. I am! I'm using the Celestron Dew Heater controller for it. It supposedly measures dew point and applies the correct amount of power to keep dew off. Maybe it's sending too much power. andrea tasselli:
I had something akin to that a long time ago when I had a large Cass. It turned out it was a heat plume from the baffle tube. To be sure I'd need to see an unprocessed but calibrated frame. I went to grab the frame and noticed in my file hierarchy that I didn't load up any flats for this one. Let me throw some flats on this real quick and see if that takes care of it. The corrector plate is rather clean but let me rule that out really quick and get back to you.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
try it with the dew heater ring switched off and see whether you get better stars. For some additional insight, the following video may be interesting https://www.youtube.com/watch?v=kR04U28iiZMCS Matthias
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
I have something along these lines as well. I have written it off as a result of dew heating too. A compromise I've gladly accepted after some even worse experiences.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
I'm going to see how I can lower the temp to an acceptable level and monitor the effects. I also run the C11 dew shield so I should be able to lower the temp considerably.
Hoping to get some clear skies in the next couple of days and test more.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
I had that same thing happen to my 11" edge. It seemed to be wind gusts and guiding problems as in too much slop in the mount especially if it close to it's weight limit.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
IMO the most likely candidate is a small obstruction
blink through your subs and see if they are limited to specific subs. I would also inspect the ota for spider webs, errant accessories, things protruding into the path, etc.
The other 'smoking gun' is the spike is on one side and then the other when doing a meridian flip
Brian
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Brian Valente:
IMO the most likely candidate is a small obstruction
blink through your subs and see if they are limited to specific subs. I would also inspect the ota for spider webs, errant accessories, things protruding into the path, etc.
The other 'smoking gun' is the spike is on one side and then the other when doing a meridian flip
Brian That was also my first association. Could even be obstructions outside the scope, such as a lamp-post, or a twig of a tree. But then only very few subs would be affected.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Willem Jan Drijfhout:
Could even be obstructions outside the scope, such as a lamp-post, or a twig of a tree. Something that far from the ota would not even show up as a spike, probably just a dimming of the target. These seem small enough to be within the dew shield or closer B
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Brian Valente:
Willem Jan Drijfhout:
Could even be obstructions outside the scope, such as a lamp-post, or a twig of a tree.
Something that far from the ota would not even show up as a spike, probably just a dimming of the target. These seem small enough to be within the dew shield or closer
B Perhaps it is different with a big reflector, but on my 130mm refractor such spikes always show up when I hit some parts of a nearby tree. A clear indication to stop, because after a few more frames, most signal will be gone.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
>>>on my 130mm refractor such spikes always show up when I hit some parts of a nearby tree. yeah i can see that. The OP description and image looks like it's more consistent and less a transient thing, but if he finds it imaging into the trees and fading out, and he included a bunch of those subs, that's a possibility. I think it's more likely an obstruction. I've seen tons of this kind of thing. just an example, this was an errant cable in a hyperstar setup. it was only on one side, but the flip produced a similar 'saturn-style' artifact https://app.astrobin.com/i/r0g2mv |
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
I’ll need to see which part of the sky the scope was pointed to, but generally there are no trees or anything nearby. I also run a very clean setup wire-wise, nothing hanging in front of the corrector at all.
Let me take a look at a few things and come back to this. My money is on the “auto” setting for the dew heater over-heating the corrector.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
One other thought. I have a filter with a small scratch on it–it produces a linear spike like this especially on bright stars, and since the scratch was toward the edge of the filter, the spikes only showed up on that side of the image, not across the whole image.
Rick
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.

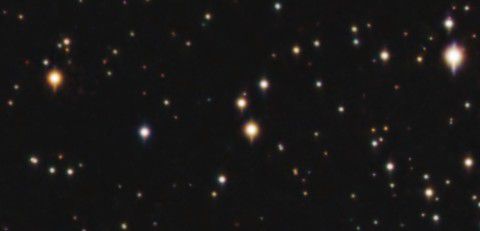

C11.jpgMy C11 has an almost identical spike as well (Bright star on right side of attached image). It was worse before I collimated and centered the OTA. Then the spike wasn't "as bad" but was still obviously present on bright stars. It affects all my subs. Any chance this is a manufacturer's defect? My OTA is at least 15 years old (deforked). Carbo Fiber OTA.  |
