HelloI recently purchased an 8" Aperture CarbonStart RC telescope. In order to check the collimation, I removed the secondary baffle extension, so I can see better the entire reflection of the primary in the Cheshire eyepiece. One thing that called my attention is the reflection of the primary in relation to the optical axis is off center. The secondary mark seems to be well centered to the pinhole of the cheshire and the concentricity of the secondary holder in relation to the primary also seems to be good. So does it means that the primary cell is not centered well in relation to the telescope tube? The stars at the corners do not look very round, they have a bit of a triangular shape. I am including a single frame taken wiht ASI2600mc at native FL    Thank you for your help
|

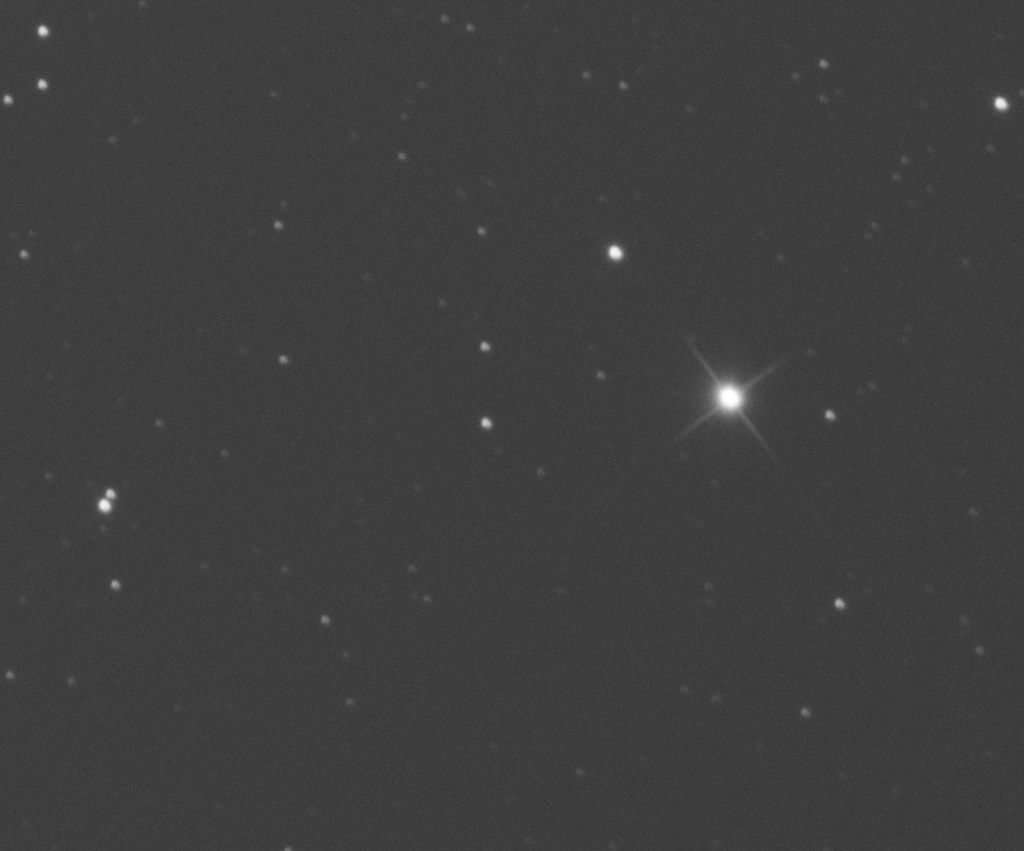

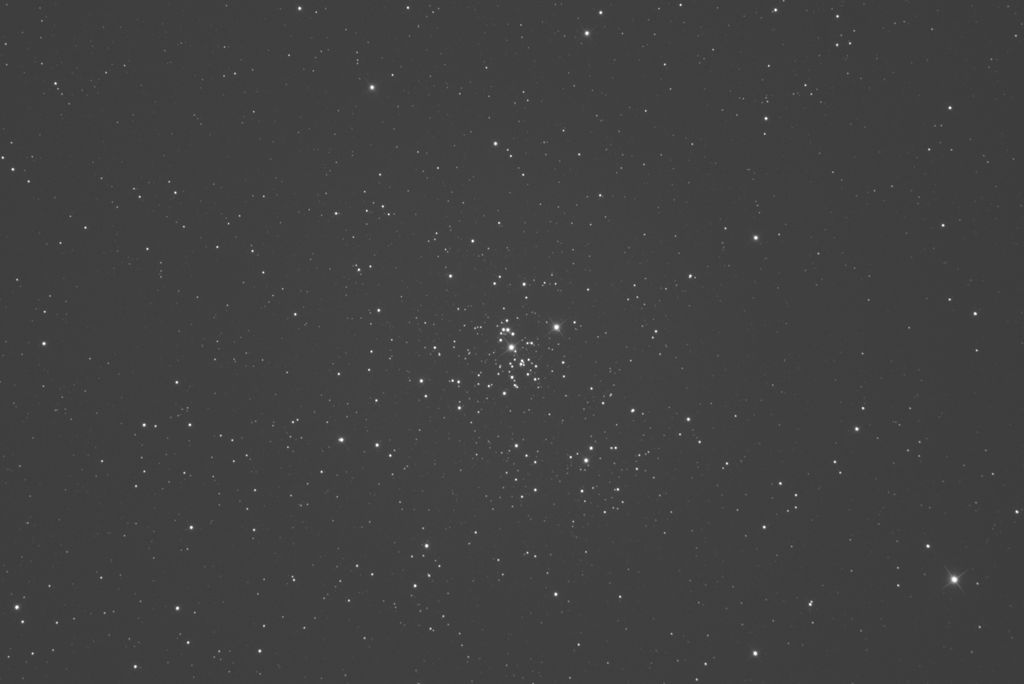

You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
To check the collimation you always have to shoot the stars out of focus. There you can see the state of the mirrors better.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
I have similar results with my RC8. The outer ring of light is not concentric when the secondary donut is centered and the inner baffle ring is concentric. I've adjusted the tilt plate to bring the outer ring concentric and everything looks perfect, but I haven't had a chance to star test yet.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
I also picked up the RC8 carbonstar. I do have pulled stars in the top two corners as well but I’m pretty sure it’s collimation on my part. It’s also my first RC coming from newts and learning about what it wants. Using an OCAL 3.0 to get close then fine tuning with defocused stars. below is one of my screenshots through the ASIAIR with poor seeing conditions.  |
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Tobiasz:
To check the collimation you always have to shoot the stars out of focus. There you can see the state of the mirrors better. +1 on this. Rack it well out of focus and that should tell you right away if your collimation is off.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Ethan Pearson:
I also picked up the RC8 carbonstar. I do have pulled stars in the top two corners as well but I’m pretty sure it’s collimation on my part. It’s also my first RC coming from newts and learning about what it wants. Using an OCAL 3.0 to get close then fine tuning with defocused stars.

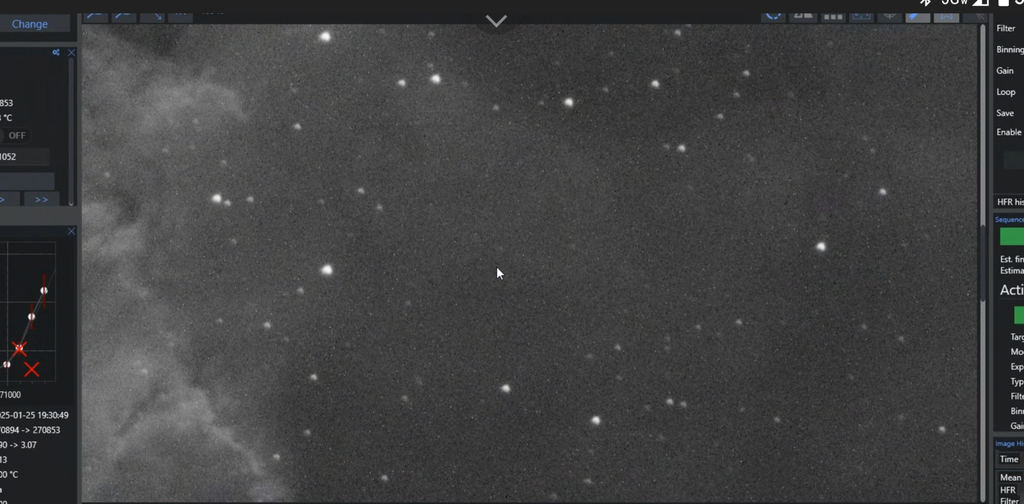

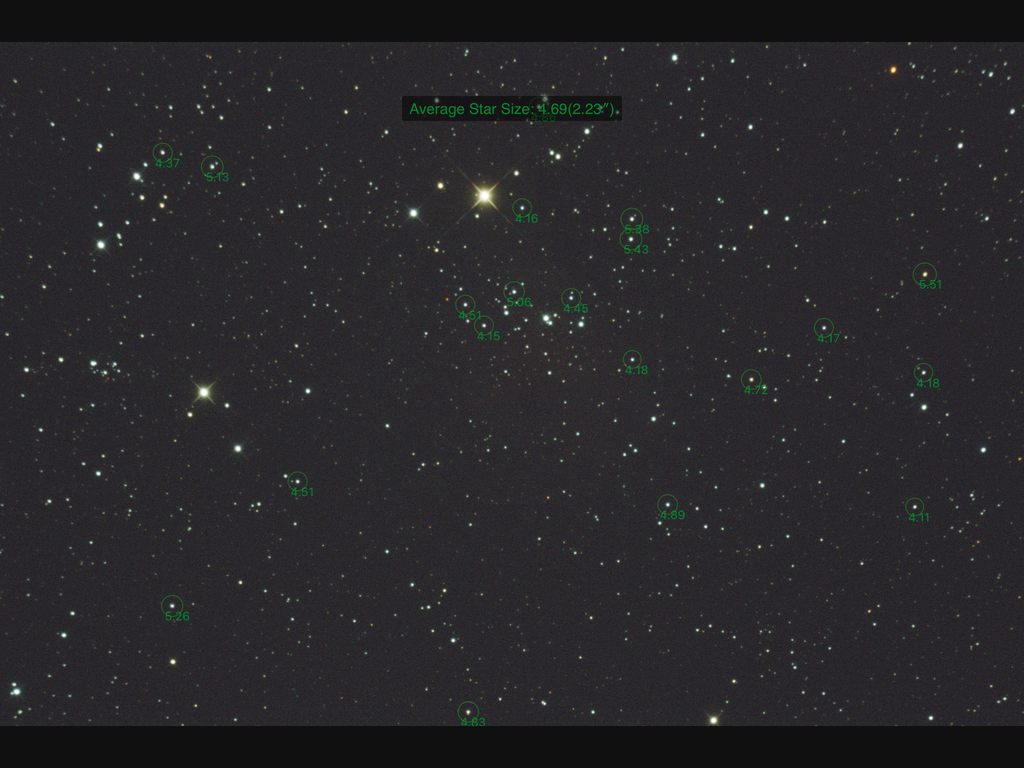

below is one of my screenshots through the ASIAIR with poor seeing conditions.
Thank you. Your picture looks similar to mine. I ordered the collimation focuser plate so I can do what you are describing
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Tobiasz:
To check the collimation you always have to shoot the stars out of focus. There you can see the state of the mirrors better. What is not clear to me is what to see in an out of focus star in this telescope. Assuming the star is in the middle of the field of view, if the secondary shadow is not concentric to the white disc of the star, does it mean the secondary needs to be collimated? I have seen two videos: One tells to move the secondary to center the shadow in the middle of the bright disk, the other video tells to move the primary to center the shadow in the middle of the bright disk. What is the correct way to do it? Thank you
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Rodrigo Roesch:
What is not clear to me is what to see in an out of focus star in this telescope. Assuming the star is in the middle of the field of view, if the secondary shadow is not concentric to the white disc of the star, does it mean the secondary needs to be collimated? I have seen two videos: One tells to move the secondary to center the shadow in the middle of the bright disk, the other video tells to move the primary to center the shadow in the middle of the bright disk. What is the correct way to do it?
Thank you Neither. Centering the secondary against the primary with respect to the image plane (e.g., the Cheshire crosspiece) should done ahead of tilt correction which is what you do either using a tilt plate.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
To refer to the first post : triangled shaped stars mean pinched optics. I noticed i easily can get triangled shaped stars by just tighten the screws of the sec a tad too much. From the moment you feel a little resistance do not screw it any further. The word 'tightening' is almost an overwhelming word for my screws on my sec.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Freddy Meiresonne (Fmeireso)To refer to the first post : triangled shaped stars mean pinched optics. I noticed i easily can get triangled shaped stars by just tighten the screws of the sec a tad too much. From the moment you feel a little resistance do not screw it any further. The word 'tightening' is almost an overwhelming word for my screws on my sec. Thank you, I most have tightened too much when I collimated the secondary
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
After a lot of failing I finally got my rc8 collimated by doing what is described in this video by Allen Mitchell. https://youtu.be/a3UOGDUaq6o?si=jhTRuCQY4Y0lWvca |
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Well I went ahead and bought the Apertura rack and pinion focuser from highpointscientific, hopefully it will actually fix my focuser droop with my heavy imaging train.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
I have only seen one Apertura scope and that was a dob that a friend bought but it was so badly made that the spider had been mounted too far forward so as to put the secondary in a position that it could not be centered under the focuser and could not be collimated. It was sent back. That was enough to convince me to stay away from Apertura.
Just one data point but I was stunned that it could have left the factory with that huge an issue.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Someday I'll learn how to collimate this thing, not today, but someday. Everything looked great inside, not so much now. I thought my defocused issues were just thermal since the scope had only been outside about 30 minutes when I checked, coma and astigmatism looked pretty good though. Now I have these ugly looking star shapes. I do like testing just how much blurX can fix. I cropped off the guiding graph, but I'm at 0.4 to 0.5 tonight so I doubt that's causing my issue.  |

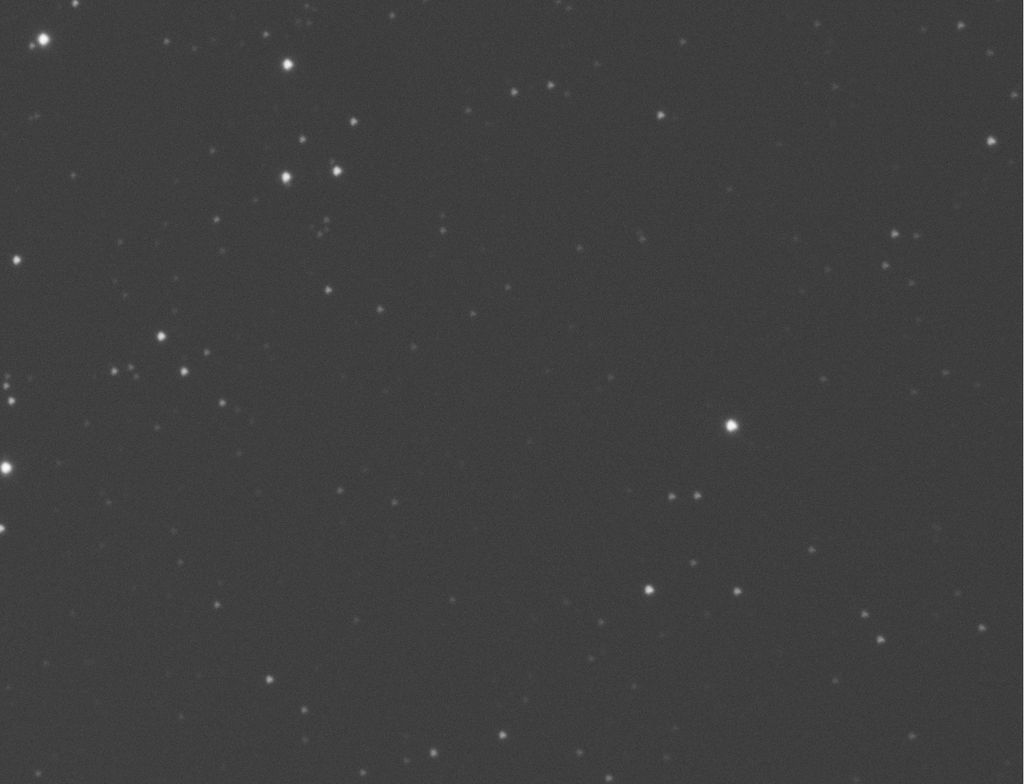

You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
That really looks like guiding error to me. At 1800mm 0.5" RMS might not be good enough, especially if the delta error is high between RA and DEC. I shoot at 900mm and can certianly see the effect if guiding gets much above 0.6" RMS.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Tony Gondola:
That really looks like guiding error to me. At 1800mm 0.5" RMS might not be good enough, especially if the delta error is high between RA and DEC. I shoot at 900mm and can certianly see the effect if guiding gets much above 0.6" RMS. It's with the reducer at 1100mm, but the stars look the same blobby and spiky in the sharpcap live view at 1 second exposure length. I really think it's just my collimation, plus ASTAP is showing 23% severe tilt, that's probably not helping either. I think I'm just going to start over once I get the new focuser, maybe try it one night without the tilt plate at all.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Tony Gondola:
That really looks like guiding error to me. At 1800mm 0.5" RMS might not be good enough, especially if the delta error is high between RA and DEC. I shoot at 900mm and can certianly see the effect if guiding gets much above 0.6" RMS.
It's with the reducer at 1100mm, but the stars look the same blobby and spiky in the sharpcap live view at 1 second exposure length. I really think it's just my collimation, plus ASTAP is showing 23% severe tilt, that's probably not helping either. I think I'm just going to start over once I get the new focuser, maybe try it one night without the tilt plate at all.
Oh wow, a lot of things adding up then.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
At least blurX can compensate for my failure. This is correct only mode.  |
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
That still looks liked pinched optics to me…typically triangled shapes stars….
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Freddy Meiresonne:
That still looks liked pinched optics to me...typically triangled shapes stars.... So I just checked it and again the secondary is a good bit off center even though I checked it inside just before taking it outside to put on the mount. Something is happening in the few minutes between those two points. Maybe it's the temperature change from 70f to 40f, maybe it's the way it clamps down, I don't know. I do know that from now on I guess I'll do the collimation after I clamp it down on the mount. It's a pretty significant shift, from dead center to black dot below the first ring looking through the cheshire (RCKOLLI), takes about a half turn on the secondary screw to get it back, crazy for just moving the scope from inside to outside. I'm sure it's my fault whatever is happening. Pinched optics could still be possible, I'll double check my primary screws.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Also, probably unrelated, maybe not, the silver focuser rail is clearly visible now that I have the scope outside pointing at the sky. I wonder if this could be causing some weird reflection or diffraction on brighter stars, it's much more shiny than in the picture here. I used a black marker on mine and it looks better. No secondary mirror shift putting it on the mount so now just waiting on temperature to stabilize so I can slew it around and see if it moves. It's just weird to me that mine has now done this at least the last two nights I've used it so I really want to figure out what's causing my mirror to shift so bad.   |
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Well, I've confirmed my indoor method does not work whatsoever for collimation, at least not with the camera attached. After collimating with my TS RCKOLLI and putting the camera on, I decided to check with the DSI method. It was very much way off, secondary and primary. After about 20 minutes of work with the DSI method, I'm really close and nearly all my star issues are gone. A 5 minute exposure from my blue filter from just now.  |

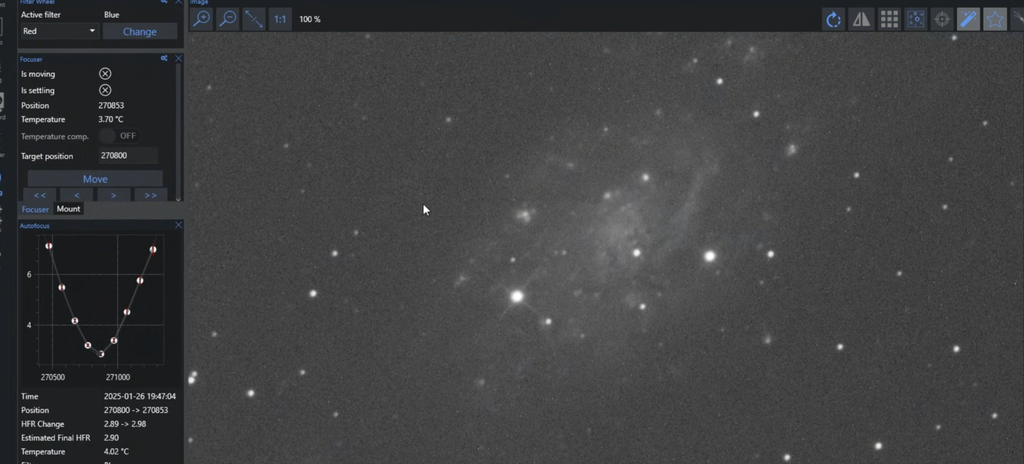

You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Just a quick update, the rack and pinion focuser from Apertura looks to be perfectly centered with the tube, unlike the stock focuser that was heavily tilted. I'm hoping my next star test will show much less tilt and significantly better stars, just have to wait on the clouds to go away.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.

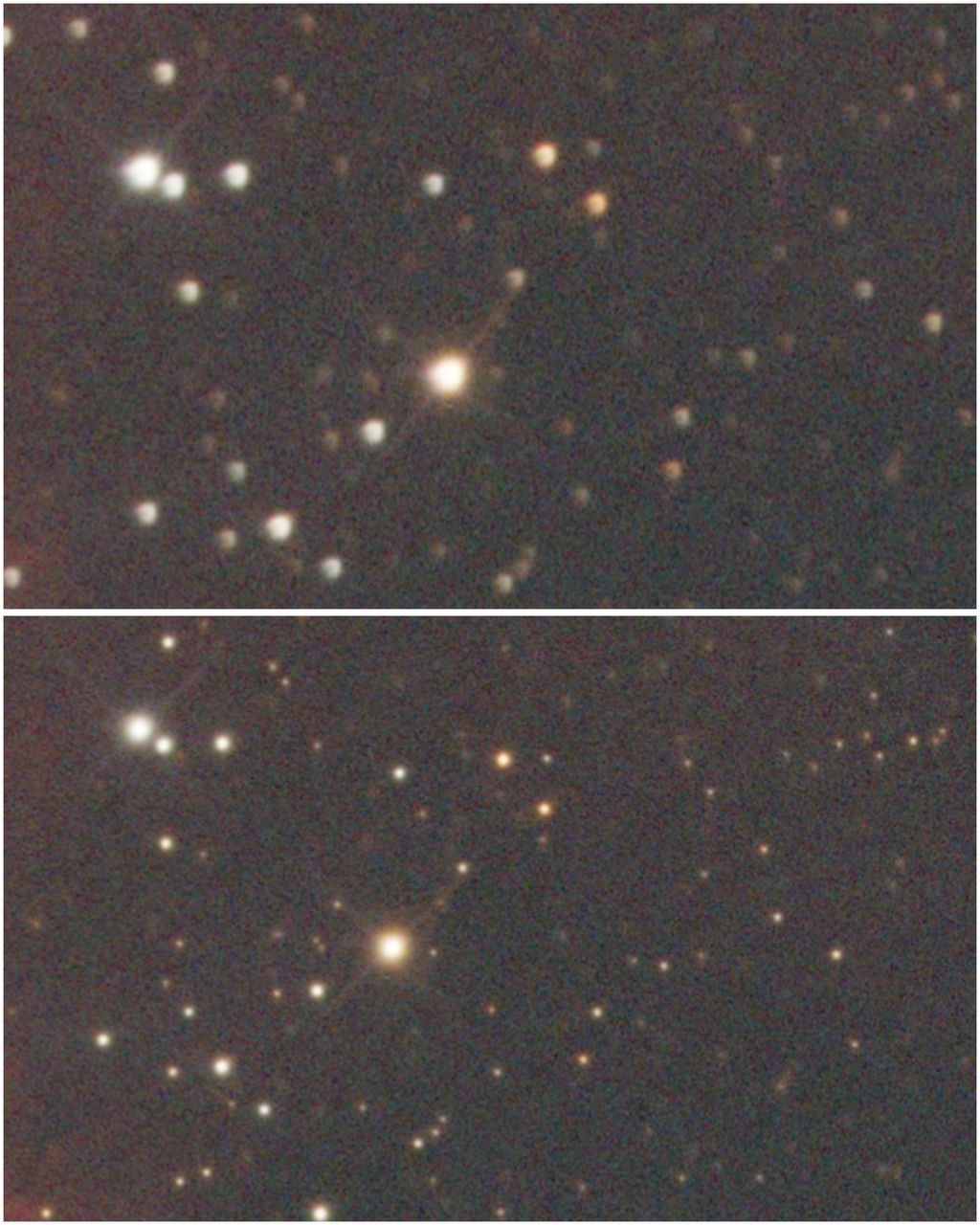

Someday I'll learn how to collimate this thing, not today, but someday. Everything looked great inside, not so much now. I thought my defocused issues were just thermal since the scope had only been outside about 30 minutes when I checked, coma and astigmatism looked pretty good though. Now I have these ugly looking star shapes. I do like testing just how much blurX can fix.
I cropped off the guiding graph, but I'm at 0.4 to 0.5 tonight so I doubt that's causing my issue. I got this kind of star shape with my RC10 when the polar alignment is not perfectly ok ;) Also I am using ocal to collimate the RCs (I have 10,8 and 6') it is working very whell but you also need to remove the primary baffle to have clear view of the spider and all the circle inside. Then just follow the tutorial ocal has done for collimation of a RC6 because it works for all size of tube. The only thing I do more is to adjust the tilt ring to center the black dot that remain not centered in the RC6 tutorial from ocal. After that I have nothing to touch , the residual tilt is less than 9%. The picture below show a residual tilt before I adjust the tilt ring, the spider is not perfectly aligned  at the end you have something like this  |
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Olivier Constans:
Someday I'll learn how to collimate this thing, not today, but someday. Everything looked great inside, not so much now. I thought my defocused issues were just thermal since the scope had only been outside about 30 minutes when I checked, coma and astigmatism looked pretty good though. Now I have these ugly looking star shapes. I do like testing just how much blurX can fix.
I cropped off the guiding graph, but I'm at 0.4 to 0.5 tonight so I doubt that's causing my issue.
I got this kind of star shape with my RC10 when the polar alignment is not perfectly ok ;)
Also I am using ocal to collimate the RCs (I have 10,8 and 6') it is working very whell but you also need to remove the primary baffle to have clear view of the spider and all the circle inside. Then just follow the tutorial ocal has done for collimation of a RC6 because it works for all size of tube. The only thing I do more is to adjust the tilt ring to center the black dot that remain not centered in the RC6 tutorial from ocal. After that I have nothing to touch , the residual tilt is less than 9%.

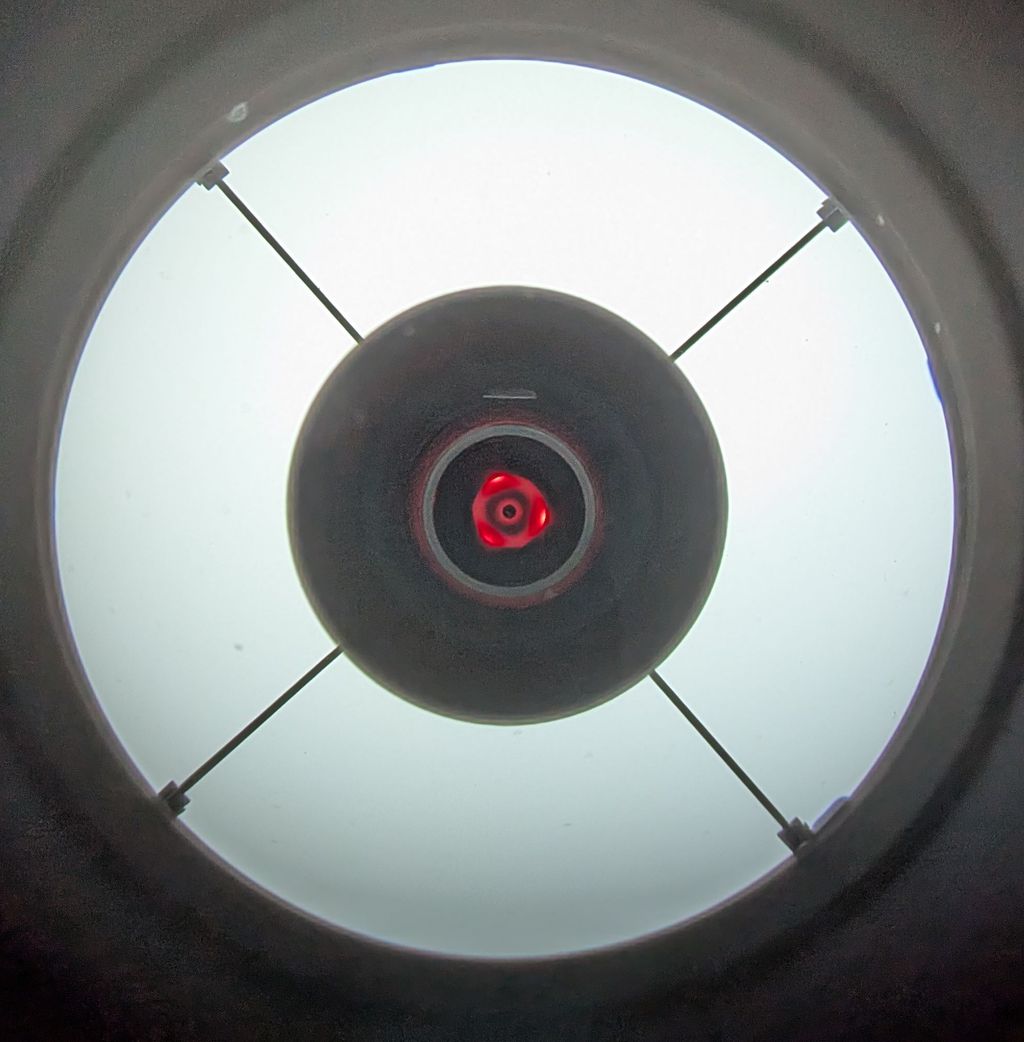

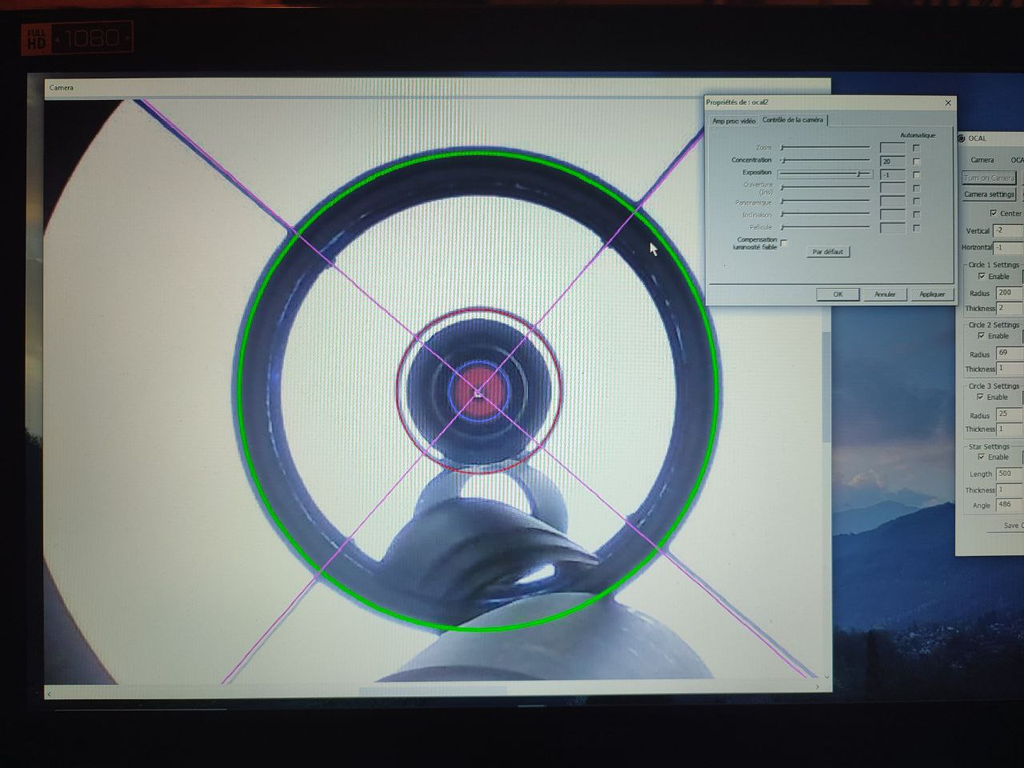

The picture below show a residual tilt before I adjust the tilt ring, the spider is not perfectly aligned

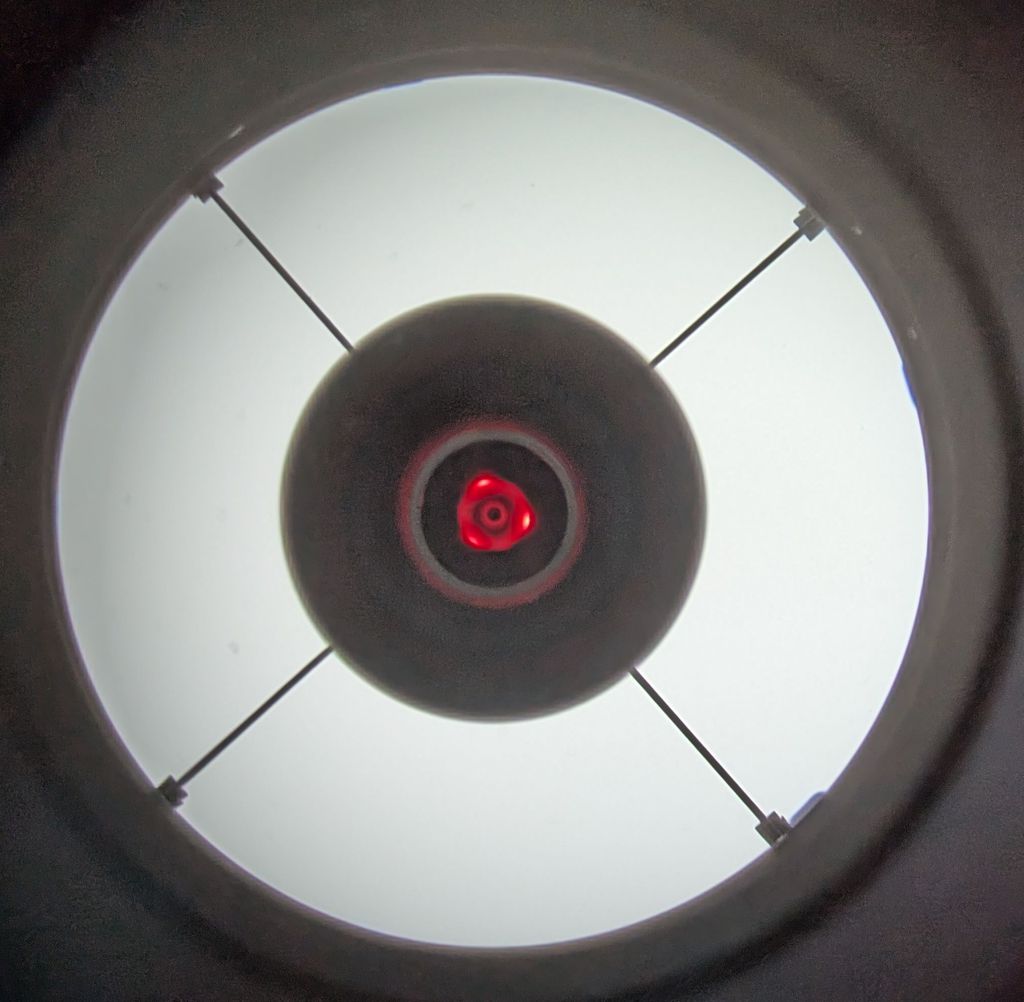

at the end you have something like this
Are the blue arrows indicating the separation between the primary and the tub? do you center that by using the focuser tilt plate? That is the part that looks off in my scope Thank you
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Thank you for your help
