I know it's possible to image with this scope but I just can't get anywhere near focus. here's what I've tried:
ASI662MC - 1.25" nosepiece inserted straight into the eyepiece holder. I can't seem to get the sensor close enough.
ASI178MM - Same as above.
ASI533MC Pro - Same as above.
Add the lens of a 2x Barlow to the end of the nosepiece - still can't find focus.
ASI120MM Mini - This camera can be inserted all the way into the eyepiece holder but I still couldn't find focus. I also set the gain to 0 and exposure to 1ms but the whole disc was blown out.
Can anyone who uses a Coronado PST for imaging offer any advice?
TIA.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
I have no personal experience with this setup, but have you browsed CN? If not you might find this helpful: https://www.cloudynights.com/topic/816236-drop-in-camera-for-coronado-pst/ |
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
I've had a look on cloudy nights as well as some other places but haven't been able to find a solution that works. Most threads are just a lot of similar comments saying either it is or it isn't possible but there isn't much in the way of any instruction.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.

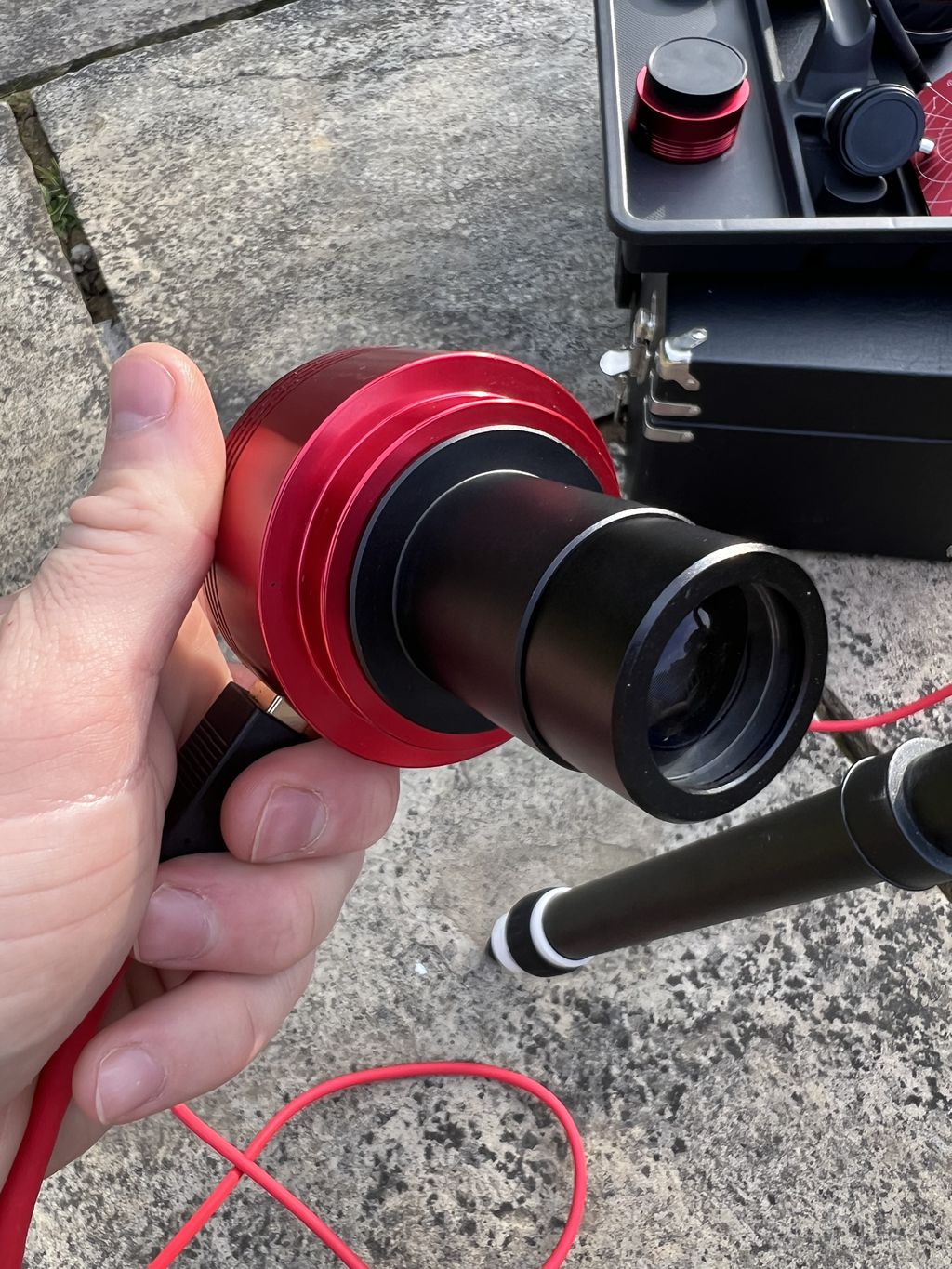

I’ve got the lens element from a 2x Barlow on the end of an ASI178MM nosepiece and inserted this all the way into the eyepiece holder on the Coronado PST but I can’t get anywhere near focus.  |
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
I used to have this telescope. I couldn't get a focus for imaging, not even with eyepiece projection. The only success I had was afocally with a smartphone. In principle, stacking multiple images can greatly improve the results just like any other type of imaging. I recommend a smartphone eyepiece adapter if you want to try it that way.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
You may want to unscrew the eyepiece holder where the BF filter is, unscrew the underlaying barrel and then screw the BF filter directly to the PST black box.
Ciao.
Lorenzo
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
I just wanted to update this. I managed to find focus with my 120mm Mini. The key was adding a UV/IR cut filter (Astronomic L3 in my case). Without the filter, I couldn't get anywhere near. Here's literally my first attempt at getting an image. I'm kind of blown away if I'm honest. I know it's not framed very well but this was just a test image and has shown me that it's worth continuing.  |
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Very good first light indeed!
Glad to know that you have addressed the focusing issue.
Ciao
Lorenzo
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
@Craig DixonThat's brilliant first image. Congratulations. I will try that with my Lunt LS35THa it's blocking filter is a B400. If i ever get a clear day Peter
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Finding focus the first time in Solar Photography with new cameras or accessories is always a challenge. Make sure to record all settings so next time you can get right to imaging. Congrats on your image. Looks great.
|
