Hello all,
First and foremost, I apologize for this newbie question that perhaps has been answered many times before.
I own the ASi533MC along with a few filters, L-Ultimate and L-eNHanced, I mostly image DSO, Nebulae specially, and I want to bring out more blue colors into my images.
What would be the best way to accomplish this?

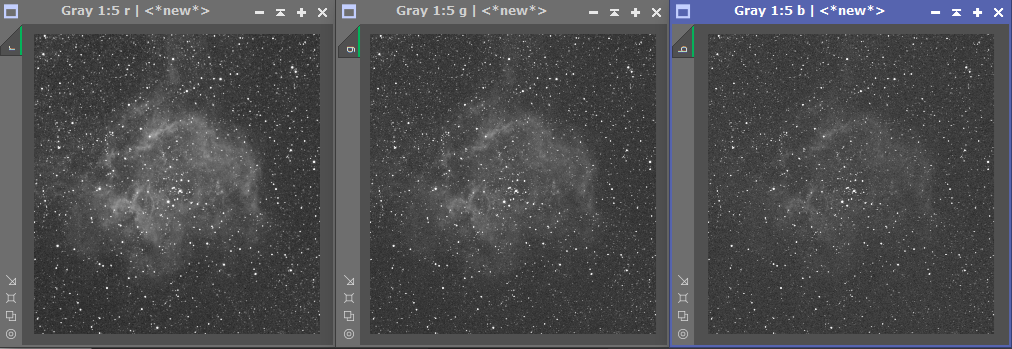

I usually separate RGB in PI, create color masks, adjusting curves and work around that. Is this the only way possible for my current equipment?
Normally I process my images with about 12-14hrs of data, not sure if increasing this would help to bring more of the blue I am looking for.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Hi, i myself use an Ultimate on my rig, and like you i found it quite hard to bring out the blues, even after a bunch of post processing.
The solution for me was to buy an affordable sii/oiii filter, as the Askar magic color D2 (or the cheaper C2).
The results completly satisfied my hopes, and with some good narrowband scripts in pixinsights (like Forraxx), i'm able to obtain the look i was aiming for.
The ultimate is a killer for Ha, and the second filter addition will do exactly what it missing from it, imo.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Get an SII filter and do SHO. Combining the l-ultimate with SII filter works reasonably well with the 533MC. That gives you a lot more options on color in your images without adding a lot of cost.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
What kind of light pollution are you imaging under? You may want to collect some of your data with a simple L2 or L3 filter to get more of the nebulae's colours in your final image. Even in bortle 6-7 areas I have had success bringing out good colours with my Canon 600D with approximately 4-5hr of integration. These images are normally test sessions for getting my equipment ready for travel sessions so I do not save them however  The filters you are using now are very narrowband and limit the blue spectra pretty heavily, so even if you do not opt for a luminance filter like I have, you may also find success with some high quality moon glow filters. Baader makes a good one! https://telescopescanada.ca/products/baader-moon-skyglowfilter-new-version-w-higher-transmission although I have never personally tested it, I have read a lot of literature about it during my equipment selection period a year or so ago. I ended up opting for a Luminance filter in the end since I often travel to low light pollution areas to acquire data only really during new moon times. Hope this helps!
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Bill Blanshan's Narrowband Normalization process is fantastic.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Hi, i myself use an Ultimate on my rig, and like you i found it quite hard to bring out the blues, even after a bunch of post processing.
The solution for me was to buy an affordable sii/oiii filter, as the Askar magic color D2 (or the cheaper C2).
The results completly satisfied my hopes, and with some good narrowband scripts in pixinsights (like Forraxx), i'm able to obtain the look i was aiming for.
The ultimate is a killer for Ha, and the second filter addition will do exactly what it missing from it, imo. Fully agreed. I bought the even cheaper Altair 6nm Sii and Oiii dual band and when I now want to go for that look it works wonderfully.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Alonso Uribe:
Hello all,
First and foremost, I apologize for this newbie question that perhaps has been answered many times before.
I own the ASi533MC along with a few filters, L-Ultimate and L-eNHanced, I mostly image DSO, Nebulae specially, and I want to bring out more blue colors into my images.
What would be the best way to accomplish this?
I usually separate RGB in PI, create color masks, adjusting curves and work around that. Is this the only way possible for my current equipment?
Normally I process my images with about 12-14hrs of data, not sure if increasing this would help to bring more of the blue I am looking for. I haven't tried it myself yet, but the new Optolong L-Quad filter supposedly brings out much more blue than the other filters.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
If you want more blue in nebulae, always do an unlinked stretch. Either L-Ultimate or Enhance capture a lot of blue, but if you stretch linked you won’t see it
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Thank you so much to all for your replies. Already placed an order for some new filters and will definitely try out the unlinked stretch!
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Alonso Uribe:
Thank you so much to all for your replies. Already placed an order for some new filters and will definitely try out the unlinked stretch! Wich filters did you order, just out of curiosity ?
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Arnie:
Alonso Uribe:
Hello all,
First and foremost, I apologize for this newbie question that perhaps has been answered many times before.
I own the ASi533MC along with a few filters, L-Ultimate and L-eNHanced, I mostly image DSO, Nebulae specially, and I want to bring out more blue colors into my images.
What would be the best way to accomplish this?
I usually separate RGB in PI, create color masks, adjusting curves and work around that. Is this the only way possible for my current equipment?
Normally I process my images with about 12-14hrs of data, not sure if increasing this would help to bring more of the blue I am looking for.
I haven't tried it myself yet, but the new Optolong L-Quad filter supposedly brings out much more blue than the other filters. I havev the L-Quad and it does bring out blues with a little help. Im new at this so you all can probably do a better job. This was my first successful imagining session with the L Quad, Im still learning the processing of DSOs.  |
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Bill Blanshan's Narrowband Normalization process is fantastic. I second this, Bill's tools are fantastic. Before switching to mono I used OSC with an L Ultimate filter and I've had great results applying a HOO normalisation after doing an unlinked stretch, which really helped to bring out the blues, even with only about 3-5 hrs worth of data
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Alonso Uribe:
Thank you so much to all for your replies. Already placed an order for some new filters and will definitely try out the unlinked stretch!
Wich filters did you order, just out of curiosity ?
I went with the same brand I've been using, Optolong, S-II and also an O-III
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Alonso Uribe:
Alonso Uribe:
Thank you so much to all for your replies. Already placed an order for some new filters and will definitely try out the unlinked stretch!
Wich filters did you order, just out of curiosity ?
I went with the same brand I've been using, Optolong, S-II and also an O-III I very strongly advise you cancel your orders if you have chosen individuals oiii and sii filters. These are made for monochrome cameras ! As color camera users, we have to go with the duo narrowband ones. For example, the Ultimate is a Ha/oiii filter, then you have to use a sii/oiii for the second one ! Some references : askar color magic D2 (or the cheaper C2), i think Altair is making one too, i dont know for other brands. You will struggle with the ones you ordered, its a common mistake and maybe the previous answers were not clear enough, sorry for that.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Alonso Uribe:
Alonso Uribe:
Thank you so much to all for your replies. Already placed an order for some new filters and will definitely try out the unlinked stretch!
Wich filters did you order, just out of curiosity ?
I went with the same brand I've been using, Optolong, S-II and also an O-III
I very strongly advise you cancel your orders if you have chosen individuals oiii and sii filters. These are made for monochrome cameras ! As color camera users, we have to go with the duo narrowband ones. For example, the Ultimate is a Ha/oiii filter, then you have to use a sii/oiii for the second one !
Some references : askar color magic D2 (or the cheaper C2), i think Altair is making one too, i dont know for other brands. You will struggle with the ones you ordered, its a common mistake and maybe the previous answers were not clear enough, sorry for that.
That's just not correct. Any narrowband filter can be used for OSC, whether it's dual or single. Choosing a dual band, you can make use of the OSC Bayer array (mind the channel mixing!), and if you use a single narrow band filter you should consider that you probably can only utilize one of the 3 color channels. I would strongly suggest to get a single SII filter and not mixed SII filter.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Alonso Uribe:
Alonso Uribe:
Thank you so much to all for your replies. Already placed an order for some new filters and will definitely try out the unlinked stretch!
Wich filters did you order, just out of curiosity ?
I went with the same brand I've been using, Optolong, S-II and also an O-III
I very strongly advise you cancel your orders if you have chosen individuals oiii and sii filters. These are made for monochrome cameras ! As color camera users, we have to go with the duo narrowband ones. For example, the Ultimate is a Ha/oiii filter, then you have to use a sii/oiii for the second one !
Some references : askar color magic D2 (or the cheaper C2), i think Altair is making one too, i dont know for other brands. You will struggle with the ones you ordered, its a common mistake and maybe the previous answers were not clear enough, sorry for that.
...and using Ha+OIII (Optolong L-whatever) plus something like the Askar D2 or C2, consider that you will get twice the OIII accumulation.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Ahh dang it! I am so confused guys! So if I use mostly the L-Ultimate I should pair it with a S-II only or S-II/O-III but doing this will get me twice the O-III ?? Anyone know any good tutorials I can study in detail to make a better choice? I already canceled the order until I have a better understanding  |
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
It's complicated 😬 The Dual narrowband filters for OSC are great, but they don't give you true narrow band due to the overlapping transmission regions of the color filter array. SII and Ha from the red channel will always bleed into the Oiii signal in the green and blue channel and vice versa.  And mixing the Oiii signal from 2 filters with different bandwidth is a whole different story. Different SNR and contrast and different mixing with SII and Ha. In the end, both ways will work, but come at different advantages and disadvantages. If you take the SII single narrow band filter you can later use it for a mono camera and at least your SII data is clean  For reference, these are the RGB channels for the Rosette Nebula with my Sii filter
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Im trying to wrap my head around this too.

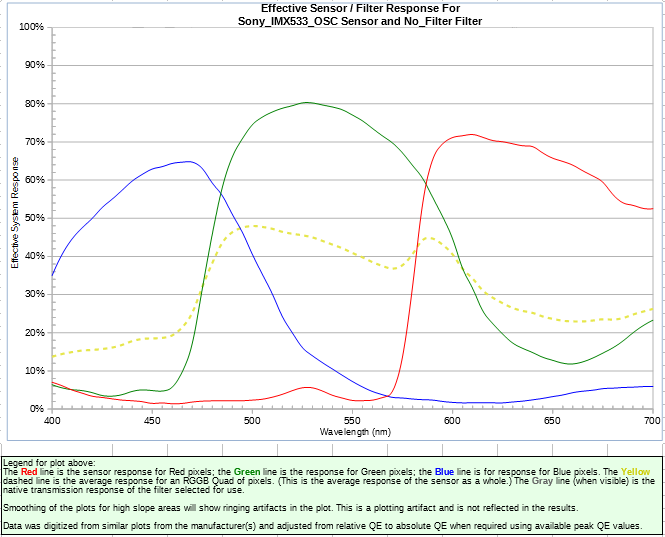

Correct me if I am wrong (regarding using these filters on a OSC camera), but it seems the only real disadvantage to using two separate filters is time consumption? Whereas the Dual narroband filters the only real drawback is some bleed over between channels?
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Personally I love the Askar D1 and D2 dual band filters. The pros/cons of using dual band filters has been discussed in several other threads both here and on Cloudy nights. I use Raul Hussein's script, DBXtract, to extract Ha, OIII, and SII signals from two dual band images. So, far I've liked the results. The tread describing the script can be found here: https://www.astrobin.com/forum/c/equipment-forums/pleiades-astrophoto-pixinsight/new-script-dbxtract/ |
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
In all the threads i read on the subject, it seems that ha and sII with mono filters will get poor amount of signal on an osc, giving the fact that only 25% of the sensor will capture it (in the red channel).
Seems logic, and backed by many threads. Did i miss something ?
I strongly recommend Raul Hussein script for narrowband processing too, its simple and very efficient.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Im new to astrophotography but not new to photography. In any type of photography, colour is perception. We all perceive and process them differently with personal preferences. It's no good to have a colourful object and have poor transmission. Even a superb black and white image is better than a colour that lacks clarity and impact. Even NASA produces SHO to better show the structures of objects, though SHO is not a "true colour" representation of that image.
So, I guess it comes down to, barring buying a mono camera, what is the best solution to create an impactful image in a OSC camera keeping in mind the time it will take to acquire that image? Where I live, in the UK, between real-world demands and the weather, time to shoot is very precious.
Im favouring the duo narrowband idea atm. With the Askar Duo D1&D2 package you can get all three bands of light and come into post at your leisure. If I have to shoot 3 individual bands of light, I'll likely not finish a target that season.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
In all the threads i read on the subject, it seems that ha and sII with mono filters will get poor amount of signal on an osc, giving the fact that only 25% of the sensor will capture it (in the red channel).
Seems logic, and backed by many threads. Did i miss something ?
I strongly recommend Raul Hussein script for narrowband processing too, its simple and very efficient. A single and dual narrowband filter will give you exactly the same signal on the same OSC sensor for Ha/Sii/Oiii if they have the same bandwidth and if you disregard channel mixing. Using a OSC will not give you 25% of the signal, you will use 25% of the sensor to reconstruct the whole image using the debayer process. This will result in reduced resolution/increased noise compared to using a mono sensor. The signal in those 25% is reduced due to the filter array transmission to 65-80ish% depending on which channel and camera is used.
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
Linear fit or auto linear fit, specially if you have several hours of data
Cs
|
You cannot like this item. Reason: "ANONYMOUS".
You cannot remove your like from this item.
Editing a post is only allowed within 24 hours after creating it.
You cannot Like this post because the topic is closed.
Copy the URL below to share a direct link to this post.
This post cannot be edited using the classic forums editor.
To edit this post, please enable the "New forums experience" in your settings.
