Relationship between FWHM of the individual frames and FWHM of the final stack [Deep Sky] Processing techniques · Emilio Frangella · ... · 10 · 234 · 1

_The3D_ 2.86
Emilio Frangella
...
·
·  Share link
I am trying to understand what's the relationship, if any, between the sharpness of the individual frames versus the sharpness of the final stacked RAW through WBPP.
My latest image https://www.astrobin.com/full/q1t9sq/0/ has an average FWHM of the individual frames, measured before stacking through subframe selector, of 1.85" (around 4px at 0.46 arcsec/pixel). After the stacking process, the resulting FWHM is around 4.6px, or 2.15 arcsec. I am trying to understand if i am losing sharpness during the stacking due to some internal process (maybe imperfect star alignment?) or this behavior is to be expected. To be noted that this discrepancy is somewhat more noticeable with my C11 (which was used to take that image) versus my RC (stacks coming from the RC data are usually much closer in FWHM to the average calculated using SFS).

Does anyone have insights on the topic?
Like
×

Sorry :-(

Editing a post is only allowed within 24 hours after creating it.
×

Share this forum post

Copy the URL below to share a direct link to this post.

Close
×

Post editing not available

This post cannot be edited using the classic forums editor.

To edit this post, please enable the "New forums experience" in your settings.

Go to Settings Close
_The3D_ 2.86
Emilio Frangella
Topic starter
...
·
·  Share link
One of my guesses is that compared to the individual frames, there are many more objects (like distant galaxies) of irregular shapes present in the image that might be mistaken by the algorithm for stars, skewing the result. I wonder if that could be the case.
Like
×

Sorry :-(

Editing a post is only allowed within 24 hours after creating it.
×

Share this forum post

Copy the URL below to share a direct link to this post.

Close
×

Post editing not available

This post cannot be edited using the classic forums editor.

To edit this post, please enable the "New forums experience" in your settings.

Go to Settings Close
andreatax 9.89
andrea tasselli
...
·
·  Share link
No, the difference is due to the alignment (and consequential resampling) process. Beautiful image, btw.
Like
×

Sorry :-(

Editing a post is only allowed within 24 hours after creating it.
×

Share this forum post

Copy the URL below to share a direct link to this post.

Close
×

Post editing not available

This post cannot be edited using the classic forums editor.

To edit this post, please enable the "New forums experience" in your settings.

Go to Settings Close
Gondola 8.11
Tony Gondola
...
·
·  Share link
There's a lot going on in the stacking process. I would not expect that math to work out perfectly on this.
Like
×

Sorry :-(

Editing a post is only allowed within 24 hours after creating it.
×

Share this forum post

Copy the URL below to share a direct link to this post.

Close
×

Post editing not available

This post cannot be edited using the classic forums editor.

To edit this post, please enable the "New forums experience" in your settings.

Go to Settings Close
_The3D_ 2.86
Emilio Frangella
Topic starter
...
·
·  Share link
thanks Andrea. Is this behavior to be somewhat expected? does it factually impact the overall sharpness of the image, and if yes, can it be reduced? i think 0.4 arcsecs of loss in resolution is quite meaningful.
Like
×

Sorry :-(

Editing a post is only allowed within 24 hours after creating it.
×

Share this forum post

Copy the URL below to share a direct link to this post.

Close
×

Post editing not available

This post cannot be edited using the classic forums editor.

To edit this post, please enable the "New forums experience" in your settings.

Go to Settings Close
AndreVilhena 4.72
Andre Vilhena
...
·
·  1 like
·  Share link

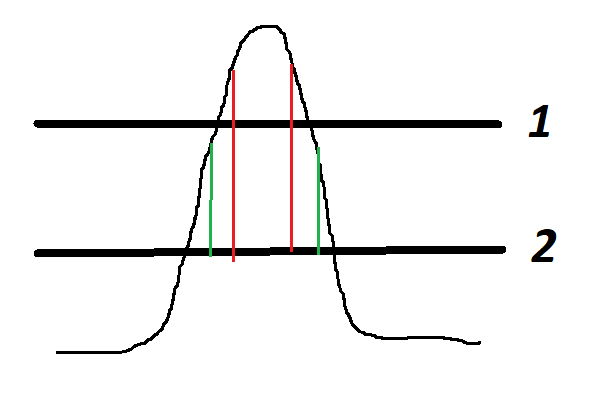

I believe the reason for that would be that the stacking will lower the noise floor and make the fainter sections of the stars more visible, thus enlarge then. I think the drawing below helps explaining:
